LearningHumanoidWalking

Code for the papers:

• Robust Humanoid Walking on Compliant and Uneven Terrain with Deep Reinforcement Learning Rohan P. Singh, Mitsuharu Morisawa, Mehdi Benallegue, Zhaoming Xie, Fumio Kanehiro

• Learning Bipedal Walking for Humanoids with Current Feedback Rohan P. Singh, Zhaoming Xie, Pierre Gergondet, Fumio Kanehiro

• Learning Bipedal Walking On Planned Footsteps For Humanoid Robots Rohan P. Singh, Mehdi Benallegue, Mitsuharu Morisawa, Rafael Cisneros, Fumio Kanehiro

Code structure:

A rough outline for the repository that might be useful for adding your own robot:

LearningHumanoidWalking/
├── envs/                      <-- Environment implementations
│   ├── common/
│   │   ├── base_humanoid_env.py   <-- Base class for all humanoid environments
│   │   ├── mujoco_env.py          <-- MuJoCo simulation wrapper
│   │   └── robot_interface.py     <-- Robot state/control abstraction
│   ├── jvrc/                      <-- JVRC robot environments
│   └── h1/                        <-- Unitree H1 robot environment
├── tasks/                     <-- Task definitions (rewards, termination)
├── rl/                        <-- Reinforcement learning
├── robots/                    <-- Robot abstractions (PD control, stepping logic)
├── models/                    <-- MuJoCo model files
└── tests/                     <-- Test suite

Key abstractions:

• BaseHumanoidEnv: Common functionality for humanoid environments (observation history, action smoothing, reset logic)
• BaseTask: Interface for task implementations (reset, step, calc_reward, done)
• Reward functions: Explicit parameter functions in tasks/rewards.py for testability

Requirements:

• Python version: >= 3.10
• uv package manager

$ uv sync

Usage:

Environment names supported:

To train:

$ uv run run_experiment.py train --logdir  --num_procs  --env

Note: Setting RAY_ADDRESS= ensures Ray starts a new local cluster instead of connecting to an existing one.

To play:

$ uv run run_experiment.py eval --logdir

Or, we could write a rollout script specific to each environment.

Cartpole

A minimal swing-up task for testing the RL pipeline. The goal is to swing the pole from hanging down to balancing upright.

$ uv run run_experiment.py train --env cartpole --n-itr 500 --std-dev 0.15 --learn-std --entropy-coeff 0.01 --minibatch-size 256 --max-traj-len 500 --no-mirror

Configuration

Environment behavior is configured via YAML files in envs//configs/. Key parameters:

# Simulation
sim_dt: 0.001              # Physics timestep
control_dt: 0.025          # Control loop period
obs_history_len: 1         # Observation history length
action_smoothing: 0.5      # Action filtering coefficient

# Task parameters
task:
  goal_height: 0.80        # Target standing height
  swing_duration: 0.75     # Gait swing phase duration
  stance_duration: 0.35    # Gait stance phase duration

# Reward weights (sum to 1.0)
reward_weights:
  foot_frc_score: 0.225
  foot_vel_score: 0.225
  # ... see configs for full list

Adding a new robot

1. Create envs// directory with:

   • gen_xml.py - MJCF generation from URDF
   • configs/base.yaml - Configuration
   • _env.py - Environment class

2. Inherit from BaseHumanoidEnv and implement:

   class MyRobotEnv(BaseHumanoidEnv):
       def _get_default_config_path(self) -> str: ...
       def _build_xml(self) -> str: ...
       def _setup_robot(self) -> None: ...
       def _setup_spaces(self) -> None: ...
       def _get_robot_state(self) -> np.ndarray: ...
       def _get_external_state(self) -> np.ndarray: ...


3. Register in envs/__init__.py:

   ENVIRONMENTS = {
       "my_robot": (MyRobotEnv, "my_robot"),
       # ...
   }


4. Run tests: uv run pytest tests/ -v

What you should see:

Ascending stairs:

Descending stairs:

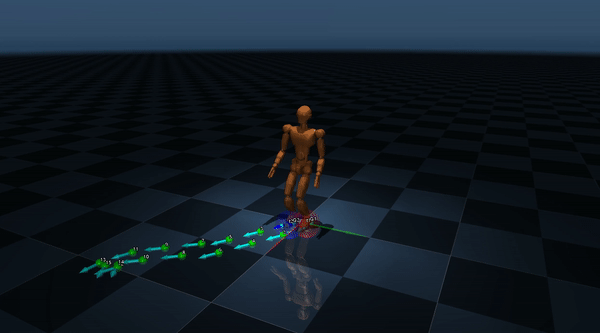

Walking on curves:

Citation

If you find this work useful in your own research, please cite the following works:

For omnidirectional walking:

@inproceedings{singh2024robust,
  title={Robust Humanoid Walking on Compliant and Uneven Terrain with Deep Reinforcement Learning},
  author={Singh, Rohan P and Morisawa, Mitsuharu and Benallegue, Mehdi and Xie, Zhaoming and Kanehiro, Fumio},
  booktitle={2024 IEEE-RAS 23rd International Conference on Humanoid Robots (Humanoids)},
  pages={497--504},
  year={2024},
  organization={IEEE}
}

For simulating "back-emf" effect and other randomizations:

@article{xie2023learning,
  title={Learning bipedal walking for humanoids with current feedback},
  author={Singh, Rohan Pratap and Xie, Zhaoming and Gergondet, Pierre and Kanehiro, Fumio},
  journal={IEEE Access},
  volume={11},
  pages={82013--82023},
  year={2023},
  publisher={IEEE}
}

For walking on footsteps:

@inproceedings{singh2022learning,
  title={Learning Bipedal Walking On Planned Footsteps For Humanoid Robots},
  author={Singh, Rohan P and Benallegue, Mehdi and Morisawa, Mitsuharu and Cisneros, Rafael and Kanehiro, Fumio},
  booktitle={2022 IEEE-RAS 21st International Conference on Humanoid Robots (Humanoids)},
  pages={686--693},
  year={2022},
  organization={IEEE}
}

Credits

The code in this repository was heavily inspired from apex. Clock-based reward terms and some other ideas were originally proposed by the team from OSU DRL for the Cassie robot, so please also consider citing the works of Jonah Siekmann, Helei Duan, Jeremy Dao, and others.
