[CVPR'24] Code release for OmniGlue

[Hanwen Jiang](https://hwjiang1510.github.io/),
[Arjun Karpur](https://scholar.google.com/citations?user=jgSItF4AAAAJ),
[Bingyi Cao](https://scholar.google.com/citations?user=7EeSOcgAAAAJ),
[Qixing Huang](https://www.cs.utexas.edu/~huangqx/),
[Andre Araujo](https://andrefaraujo.github.io/)

[Project Page](https://hwjiang1510.github.io/OmniGlue/) |
[Paper](https://arxiv.org/abs/2405.12979) |
[Usage](#installation) |
[Demo](https://huggingface.co/spaces/qubvel-hf/omniglue)

Official code release for the CVPR 2024 paper: OmniGlue: Generalizable Feature Matching with Foundation Model Guidance.

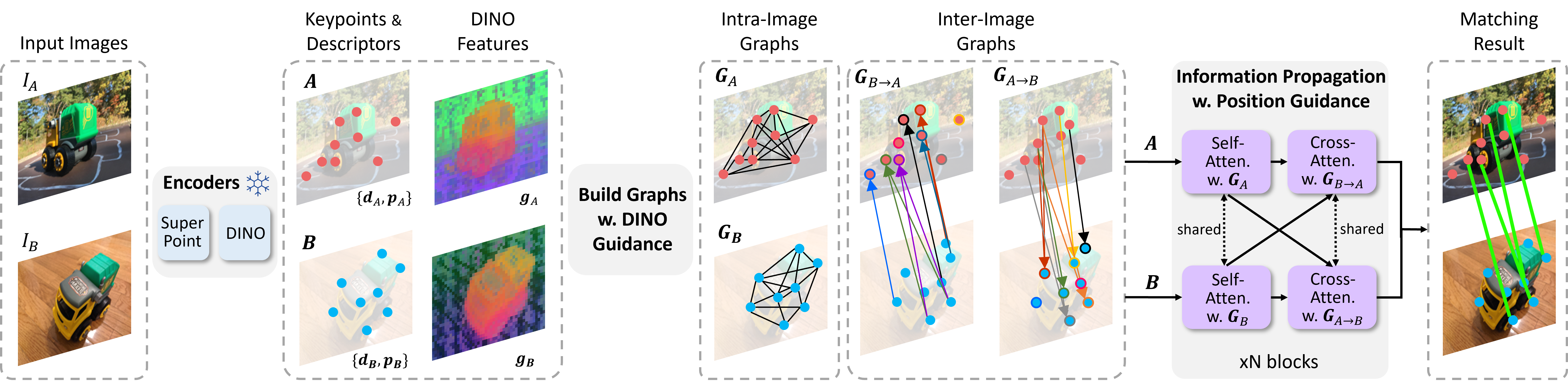

Abstract: The image matching field has been witnessing a continuous emergence of novel learnable feature matching techniques, with ever-improving performance on conventional benchmarks. However, our investigation shows that despite these gains, their potential for real-world applications is restricted by their limited generalization capabilities to novel image domains. In this paper, we introduce OmniGlue, the first learnable image matcher that is designed with generalization as a core principle. OmniGlue leverages broad knowledge from a vision foundation model to guide the feature matching process, boosting generalization to domains not seen at training time. Additionally, we propose a novel keypoint position-guided attention mechanism which disentangles spatial and appearance information, leading to enhanced matching descriptors. We perform comprehensive experiments on a suite of 6 datasets with varied image domains, including scene-level, object-centric and aerial images. OmniGlue’s novel components lead to relative gains on unseen domains of 18.8% with respect to a directly comparable reference model, while also outperforming the recent LightGlue method by 10.1% relatively.

Installation

First, use pip to install omniglue:

conda create -n omniglue pip
conda activate omniglue

git clone https://github.com/google-research/omniglue.git
cd omniglue
pip install -e .

Then, download the following models to ./models/

# Download to ./models/ dir.
mkdir models
cd models

# SuperPoint.
git clone https://github.com/rpautrat/SuperPoint.git
mv SuperPoint/pretrained_models/sp_v6.tgz . && rm -rf SuperPoint
tar zxvf sp_v6.tgz && rm sp_v6.tgz

# DINOv2 - vit-b14.
wget https://dl.fbaipublicfiles.com/dinov2/dinov2_vitb14/dinov2_vitb14_pretrain.pth

# OmniGlue.
wget https://storage.googleapis.com/omniglue/og_export.zip
unzip og_export.zip && rm og_export.zip

Direct download links:

• [SuperPoint weights]: from github.com/rpautrat/SuperPoint
• [DINOv2 weights]: from github.com/facebookresearch/dinov2 (ViT-B/14 distilled backbone without register).
• [OmniGlue weights]

Usage

The code snippet below outlines how you can perform OmniGlue inference in your own python codebase.

import omniglue

image0 = ... # load images from file into np.array
image1 = ...

og = omniglue.OmniGlue(
  og_export='./models/og_export',
  sp_export='./models/sp_v6',
  dino_export='./models/dinov2_vitb14_pretrain.pth',
)

match_kp0s, match_kp1s, match_confidences = og.FindMatches(image0, image1)
# Output:
#   match_kp0: (N, 2) array of (x,y) coordinates in image0.
#   match_kp1: (N, 2) array of (x,y) coordinates in image1.
#   match_confidences: N-dim array of each of the N match confidence scores.

Demo

demo.py contains example usage of the omniglue module. To try with your own images, replace ./res/demo1.jpg and ./res/demo2.jpg with your own filepaths.

conda activate omniglue
python demo.py ./res/demo1.jpg ./res/demo2.jpg
#

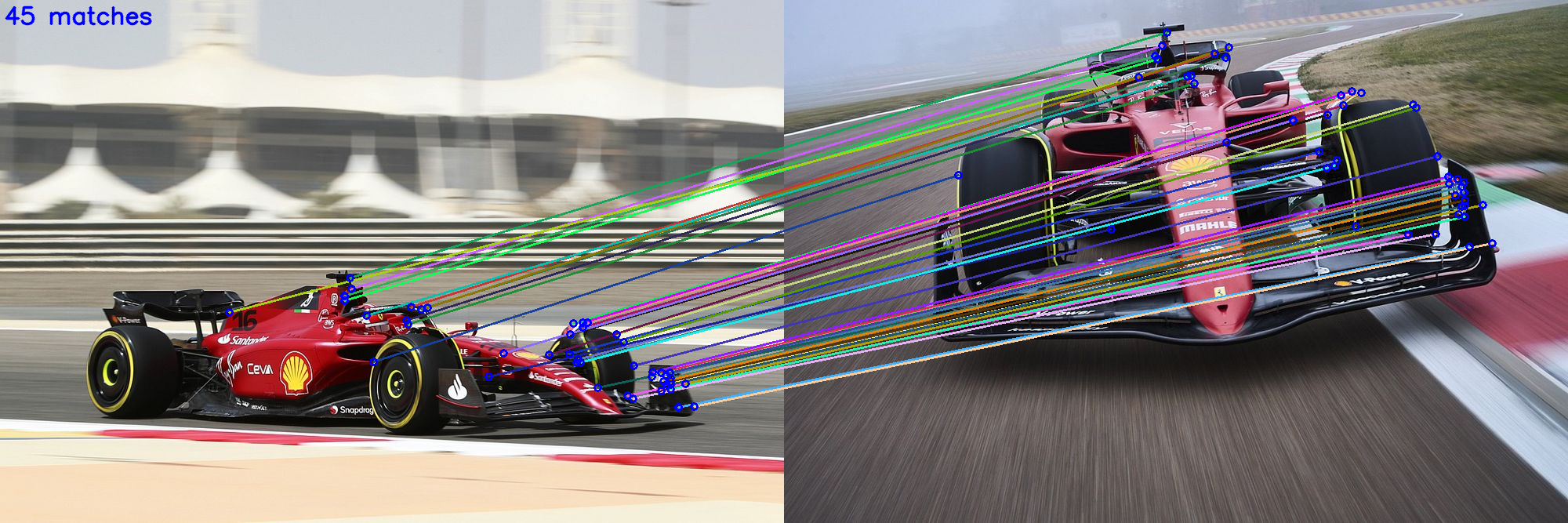

Expected output:

Repo TODOs

• Provide demo.py example usage script.
• Add to image matching webui (credit: @Vincentqyw)
• Support matching for pre-extracted features.
• Release eval pipelines for in-domain (MegaDepth).
• Release eval pipelines for all out-of-domain datasets.

BibTex

@inproceedings{jiang2024Omniglue,
   title={OmniGlue: Generalizable Feature Matching with Foundation Model Guidance},
   author={Jiang, Hanwen and Karpur, Arjun and Cao, Bingyi and Huang, Qixing and Araujo, Andre},
   booktitle={Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR)},
   year={2024},
}

This is not an officially supported Google product.
