TensorFlow Unreal Plugin

TensorFlow and Keras for Unreal Engine 5.8, from Blueprints and C++. You write the model in Python. The plugin runs it, trains it, feeds it inputs, render targets and audio, and returns results and events to Unreal.

2.0 is a full rewrite.

• Python runs out of process, in an embedded interpreter with a per-project virtual environment, through PythonCLI on top of CLISystem.
• A crash in TensorFlow never takes the editor down, and the GIL never touches the game thread.
• MachineLearningRemote, socket.io and UnrealEnginePython are gone.
• The Python API stays the same: TFPluginAPI scripts keep working. See Migrating from 1.x.

Status: 2.0.0. Tested on Win64 in the editor and in packaged builds, and on Linux x86_64 in packaged builds.

Discord Server

PyTorch Alternative

If you find TensorFlow GPU support on Windows lacking or would like to use a more modern python ML library with unreal, consider using the PyTorch-Unreal plugin instead.

Setup

1. Put these three plugins in your project's Plugins/:

   • TensorFlow-Unreal
   • PythonCLI-Unreal
   • CLISystem-Unreal

   Release archives include all three, with the Python interpreter. From git, fetch the interpreter with PythonCLI's Tools/FetchRuntime.ps1 (or fetch_runtime.sh).

2. Start the editor. In the background, PythonCLI creates Intermediate/PythonCLI/venv and installs the TensorFlow profile into it:

   • The download is about 350 MB, once.
   • Later starts skip setup.
   • A rebuilt venv comes from uv's cache in seconds.

3. Add a TensorFlow component to an actor. Set Script Params > Script to your script, for example my_model for Content/Scripts/my_model.py, or a bundled example such as examples/mnist_keras_cnn.

Environment profiles

Choose one in Project Settings > Plugins > TensorFlow > Profile:

• Your own packages: add them in Project Settings > Plugins > Python CLI > Requirements, or in Content/Scripts/requirements.txt.
• Long paths: keep the project path short or enable long paths on Windows; TensorFlow's files are deep.
• Log level: TensorFlow's C++ logging uses Profile's TensorFlow Log Level (TF_CPP_MIN_LOG_LEVEL).

Packaging

Packaged games (Win64, Linux) take the interpreter, the scripts and, by default, the installed packages with them. PythonCLI installs the environment's packages for the target platform while packaging, so a Linux build packaged on Windows gets Linux wheels. The tensorflow-cpu profile adds about 1.2 GB to a Linux build and 1.3 GB to a Win64 build.

To keep TensorFlow out of the build, set Project Settings > Plugins > Python CLI > Packaged Env Mode to Install On First Run: the game then installs it on its first launch. See PythonCLI's packaging notes.

Python API

import unreal_bridge as ue
from unreal_bridge.ml import TFPluginAPI   # or MLPluginAPI: the same class, snake_case hooks

class Classifier(TFPluginAPI):
    def on_setup(self):                    # once, when the script starts: build or load the model
        import keras
        self.model = keras.saving.load_model(ue.content_path("Models", "mnist.keras"))

    def on_json_input(self, data):         # Send Json Input -> On Input Results
        return {"prediction": 3}

    def on_tensor_input(self, image):      # Send Tensor Input / Texture / Render Target: a numpy array
        scores = self.model(image[None], training=False)
        return {"prediction": int(scores.numpy().argmax())}

    def on_begin_training(self):           # Begin Training: runs on its own thread
        self.model.fit(x, y, epochs=5, callbacks=[ue.keras.StopOnRequest(self),    # Stop Training ends fit()
                                                  ue.keras.ProgressEvents(self)])   # -> On Training Progress
        self.call_event("Saved", {"path": "..."})                                   # -> On Custom Event
        return {"accuracy": 0.99}           # -> On Training Complete

def get_api():
    return Classifier.get_instance()

The API class:

• Hooks: on_setup, on_json_input, on_float_array_input, on_tensor_input, on_begin_training, on_stop_training, on_save_model and on_load_model. The camelCase forms from 1.x work too (onJsonInput, onBeginTraining, …).
• Custom functions: any other method can be called with Call Custom Function.
• Stopping: self.should_stop (or shouldStop) turns true on Stop Training, a script stop or reload, and EndPlay.
• Events: self.call_event(name, data) (or callEvent) reaches On Custom Event. self.report_progress(data) reaches On Training Progress.
• Concurrency: inputs are answered while training runs. Everything else for a script runs in order, on that script's own thread.

The rest of unreal_bridge (ue.log, ue.emit, @ue.on_stream, …) is in the PythonCLI README.

Blueprint API

TensorFlow component. It is a Python ML component, and runs in PythonCLI's shared Python process by default.

Properties:

• Train On Begin Play
• Stop Training On End Play
• Script Params: Script, Script Root and Args (ue.args).
• Use Shared Process: off gives the component its own process.

Reading results: use Get Json Number / String / Floats with a path such as "prediction", "scores.3" or "action.move".

Images:

• Texture To Tensor and Render Target To Tensor produce float32 tensors (H, W, C), or (C, H, W) when channels-first. Tensor To Texture goes the other way.
• The 1.x conversions are kept: To Float Array, To Grayscale Float Array, To Texture2D, Invert Float Array.
• Texture reading uses, in order:
  • the editor's source image;
  • a CPU copy (texture Availability: CPU);
  • uncompressed platform data (Compression UserInterface2D or Grayscale).
• Render targets are read with a blocking call.

Streams: add a Python Render Target Stream next to the component, for every frame of a scene capture without stalls. Python Audio Stream does the same for audio and Python Observation Stream for gameplay data. See examples/camera_stream_classify.

TF Audio Capture (1.x): microphone capture as raw PCM bytes (On Audio Data, On Capture Finished, WAV helpers), now on Unreal's AudioCapture for every platform. New projects should use a Python Audio Stream.

Example map

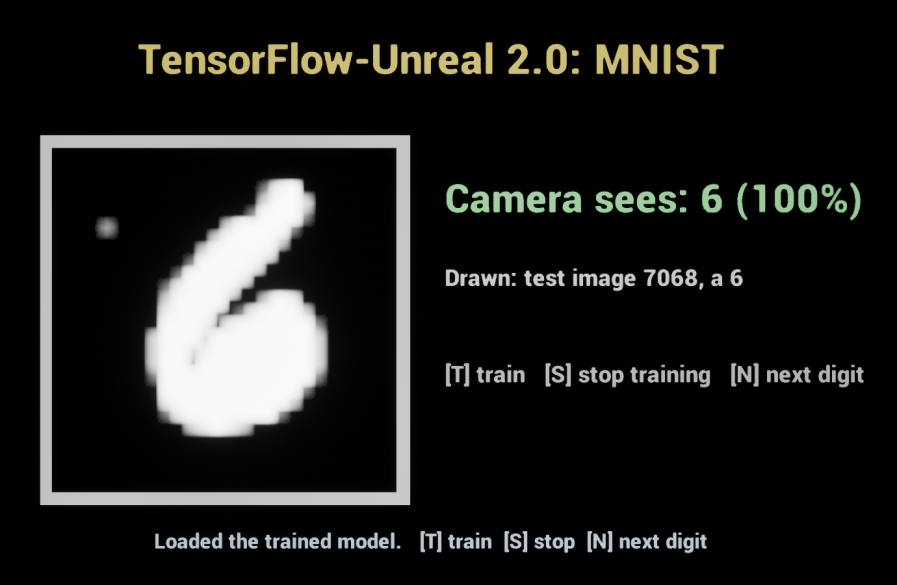

Open /TensorFlow/Examples/MnistExample (Content Browser: Plugins > TensorFlow Content > Examples) and press Play.

How it works:

• BP_MnistExample runs examples/mnist_demo on a TensorFlow component.
• On the first play it trains a small CNN on MNIST (about 30 s on a CPU) with live status lines. It saves Saved/TensorFlow/mnist.keras, and later plays load that model instead.
• Every 3 seconds it asks Python for a test digit and draws it into a render target.
• A Python Render Target Stream next to the component streams that render target back to the script, and the model reads what the camera sees.
• Keys: T trains, S stops training, N shows the next digit.

Event graph: everything comes from events.

• On Custom Event (Status, Digit, Prediction) drives the TextRender components and the canvas.
• On Script Error shows Python errors.
• The keys call Begin Training, Stop Training and Call Custom Function.

Regenerating: the example content is generated by BlueprintOracle from Tools/Examples/mnist_example.json:

UnrealEditor-Cmd.exe .uproject -run=BlueprintOracle -migrate -spec=Plugins/TensorFlow-Unreal/Tools/Examples/mnist_example.json -commit -unattended -nullrhi -nopause

Examples

These are bundled in Content/Scripts/examples/ and resolve by name, for example Script = examples/mnist_keras_cnn:

The examples project has maps for 1.x.

Migrating from 1.x

The backend changed completely; there is no MachineLearningRemote, socket.io or UnrealEnginePython mode. What carries over:

• Python scripts: TFPluginAPI subclasses with camelCase hooks, getApi(), callEvent, shouldStop, import unreal_engine as ue (log, get_content_dir). from TFPluginAPI import TFPluginAPI still works. Scripts using TF1 sessions and placeholders need porting to TF2 / Keras 3.
• Script names: set Script Params > Script to your module name; the .py is optional.
• Blueprints: the component is now C++ (TensorFlowComponent).
  • A CoreRedirect maps the old Blueprint class, so references load, but its variables (Tensor Flow Module, Should Train On Begin Play) need setting again.
  • The function names are the same: Begin Training, Stop Training, Send Json Input, Send Json Input Texture. The events are On Input Results, On Training Complete, and On Custom Event (1.x's On Event).
• Dependencies: upymodule.json is gone. Use the environment profile, Python CLI Requirements, or Content/Scripts/requirements.txt.
• Old code: the last 1.x commit is tagged v1.6.0beta-legacy.

Tests

UnrealEditor-Cmd.exe .uproject -ExecCmds="Automation RunTests TensorFlow; Quit" -unattended -nullrhi -nopause

• The tests cover the profile, image conversions, the add example, and MNIST training, stop and prediction.
• Two tests need a real RHI (use -RenderOffscreen instead of -nullrhi):
  • TensorFlow.Mnist.WithCamera draws a test digit into a render target, streams it, and checks the classification.
  • TensorFlow.Examples.MnistMap plays the example map in PIE. It waits until the camera reads the digit the map drew, presses N, and saves a screenshot to Saved/Screenshots.

License

MIT; see LICENSE.
