TensorFlow Lite Micro for Espressif Chipsets

• As per TFLite Micro guidelines for vendor support, this repository has the esp-tflite-micro component and the examples needed to use Tensorflow Lite Micro on Espressif Chipsets (e.g., ESP32-P4) using ESP-IDF platform.
• The base repo on which this is based can be found here.

Build Status

Build Type	Status
Examples Build

Quick Flash (Board-Specific)

Board	Example	Flash

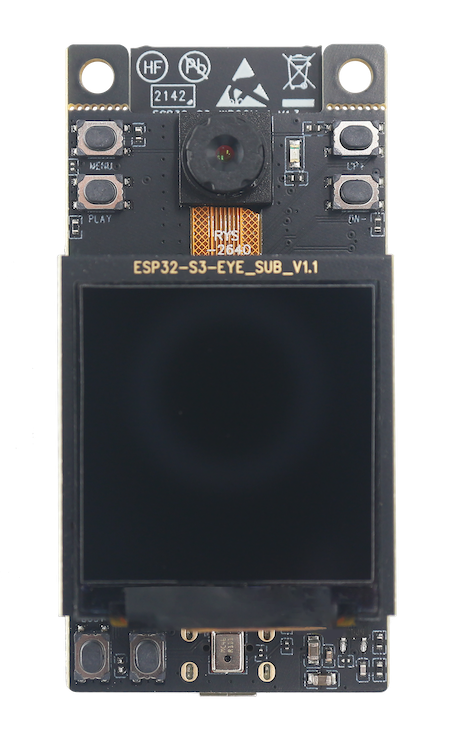

ESP32-S3-EYE	Person Detection	Flash Now

Try All Examples

How to Install

ESP-IDF Support Policy

We keep track with the ESP-IDF's support period policy mentioned here.

Install the ESP IDF

Follow the instructions of the ESP-IDF get started guide to setup the toolchain and the ESP-IDF itself.

The next steps assume that this installation is successful and the IDF environment variables are set. Specifically,

• the IDF_PATH environment variable is set
• the idf.py and Xtensa-esp32 tools (e.g., xtensa-esp32-elf-gcc) are in $PATH

Using the component

Run the following command in your ESP-IDF project to install this component:

idf.py add-dependency "esp-tflite-micro"

Building the example

To get the example, run the following command:

idf.py create-project-from-example "esp-tflite-micro:"

Note:

• If you have cloned the repo, the examples come as the part of the clone. Simply go to the example directory (examples/) and build the example.

Available examples are:

• hello_world
• micro_speech
• person_detection

Set the IDF_TARGET

idf.py set-target esp32p4

To build the example, run:

idf.py build

Load and run the example

To flash (replace /dev/ttyUSB0 with the device serial port):

idf.py --port /dev/ttyUSB0 flash

Monitor the serial output:

idf.py --port /dev/ttyUSB0 monitor

Use Ctrl+] to exit.

The previous two commands can be combined:

idf.py --port /dev/ttyUSB0 flash monitor

• Please follow example READMEs for more details.

ESP-NN Integration

ESP-NN contains optimized kernel implementations for kernels used in TFLite Micro. The library is integrated with this repo and gets compiled as a part of every example. Additional information along with performance numbers can be found here.

Performance Comparison

A quick summary of ESP-NN optimisations, measured on various chipsets:

Note:

• The above is time taken for execution of the invoke() call
• Internal memory used
• ESP32-P4 optimisation is work in progress
• Without ESP-NN case is when esp-nn is completely disabled by removing below flag from CMakeLists.txt:

    # enable ESP-NN optimizations by Espressif
    target_compile_options(${COMPONENT_LIB} PRIVATE -DESP_NN)


Detailed kernelwise performance can be found here.

Sync to latest TFLite Micro upstream

As per the upstream repository policy, the tflite-lib is copied into the components directory in this repository. We keep updating this to the latest upstream version from time to time. Should you, in any case, wish to update it locally, you may run the scripts/sync_from_tflite_micro.sh script.

Contributing

• If you find an issue in these examples, or wish to submit an enhancement request, please use the Issues section on Github.
• For ESP-IDF related issues please use esp-idf repo.
• For TensorFlow related information use tflite-micro repo.

License

This component and the examples are provided under Apache 2.0 license, see LICENSE file for details.

TensorFlow library code and third_party code contains their own license specified under respective repos.
