Supported Formats
Subtitle: SubRip, TTML, WebVTT, (Advanced) SubStation Alpha, MicroDVD, MPL2, TMP, EBU STL, SAMI, SCC and SBV.
Video/Audio: MP4, WebM, Ogg, 3GP, FLV, MOV, Matroska, MPEG TS, WAV, MP3, AAC, FLAC, etc.
:information_source: Subaligner relies on file extensions as default hints to process a wide range of audiovisual or subtitle formats. It is recommended to use extensions widely acceppted by the community to ensure compatibility.
Dependant package
Required by the basic installation: FFmpeg
Install FFmpeg
apt-get install ffmpeg brew install ffmpeg
Basic Installation
Install from PyPI
pip install -U pip && pip install wheel pip install subaligner
Install from source
git clone git@github.com:baxtree/subaligner.git && cd subaligner pip install -U pip pip install .
:information_source: It is highly recommended creating a virtual environment prior to installation.
Installation with Optional Packages Supporting Additional Features
Install dependencies for enabling translation and transcription
pip install 'subaligner[llm]'
Install dependencies for enabling forced alignment
pip install --no-build-isolation 'subaligner[stretch]'
Install dependencies for setting up the development environment
pip install --no-build-isolation 'subaligner[dev]'
Install all extra dependencies
pip install --no-build-isolation 'subaligner[harmony]'
Note that subaligner[stretch], subaligner[dev] and subaligner[harmony] require eSpeak to be pre-installed:
Install eSpeak
apt-get install espeak libespeak1 libespeak-dev espeak-data brew install espeak
Also, if Python 3.12+ is used, you will need to install the following patch for those extras to fully function:
Install patched aeneas
pip install --no-build-isolation -r requirements-py312-patched.txt
Container Support
If you prefer using a containerised environment over installing everything locally:
Run subaligner with a container
docker run -v pwd:pwd -w pwd -it baxtree/subaligner bash
For Windows users, you can use Windows Subsystem for Linux (WSL) to install Subaligner.
Alternatively, you can use Docker Desktop to pull and run the image.
Assuming your media assets are stored under d:\media, open built-in command prompt, PowerShell, or Windows Terminal:
Run the subaligner container on Windows
docker pull baxtree/subaligner docker run -v "/d/media":/media -w "/media" -it baxtree/subaligner bash
Usage
Single-stage alignment (high-level shift with lower latency)
subaligner -m single -v video.mp4 -s subtitle.srt subaligner -m single -v https://example.com/video.mp4 -s https://example.com/subtitle.srt -o subtitle_aligned.srt
Dual-stage alignment (low-level shift with higher latency)
subaligner -m dual -v video.mp4 -s subtitle.srt subaligner -m dual -v https://example.com/video.mp4 -s https://example.com/subtitle.srt -o subtitle_aligned.srt
Generate subtitles by transcribing audiovisual files
subaligner -m transcribe -v video.mp4 -ml eng -mr whisper -mf small -o subtitle_aligned.srt subaligner -m transcribe -v video.mp4 -ml zho -mr whisper -mf medium -o subtitle_aligned.srt
Pass in a global prompt for the entire audio transcription
subaligner -m transcribe -v video.mp4 -ml eng -mr whisper -mf turbo -ip "your initial prompt" -o subtitle_aligned.srt
Use the full subtitle content as a prompt
subaligner -m transcribe -v video.mp4 -s subtitle.srt -ml eng -mr whisper -mf turbo -o subtitle_aligned.srt
Use the previous subtitle segment as the prompt when transcribing the following segment
subaligner -m transcribe -v video.mp4 -s subtitle.srt --use_prior_prompting -ml eng -mr whisper -mf turbo -o subtitle_aligned.srt
(For details on the prompt crafting for transcription, please refer to Whisper prompting guide.)
Alignment on segmented plain texts (double newlines as the delimiter)
subaligner -m script -v video.mp4 -s subtitle.txt -o subtitle_aligned.srt subaligner -m script -v https://example.com/video.mp4 -s https://example.com/subtitle.txt -o subtitle_aligned.srt
Generate JSON raw subtitle with per-word timings
subaligner -m transcribe -v video.mp4 -ml eng -mr whisper -mf turbo -ip "your initial prompt" --word_time_codes -o raw_subtitle.json subaligner -m script -v video.mp4 -s subtitle.txt --word_time_codes -o raw_subtitle.json
Alignment on multiple subtitles against the single media file
subaligner -m script -v video.mp4 -s subtitle_lang_1.txt -s subtitle_lang_2.txt subaligner -m script -v video.mp4 -s subtitle_lang_1.txt subtitle_lang_2.txt
Alignment on embedded subtitles
subaligner -m single -v video.mkv -s embedded:stream_index=0 -o subtitle_aligned.srt subaligner -m dual -v video.mkv -s embedded:stream_index=0 -o subtitle_aligned.srt
Translative alignment with the ISO 639-3 language code pair (src,tgt)
subaligner --languages subaligner -m single -v video.mp4 -s subtitle.srt -t src,tgt subaligner -m dual -v video.mp4 -s subtitle.srt -t src,tgt subaligner -m script -v video.mp4 -s subtitle.txt -o subtitle_aligned.srt -t src,tgt subaligner -m dual -v video.mp4 -s subtitle.srt -tr helsinki-nlp -o subtitle_aligned.srt -t src,tgt subaligner -m dual -v video.mp4 -s subtitle.srt -tr facebook-mbart -tf large -o subtitle_aligned.srt -t src,tgt subaligner -m dual -v video.mp4 -s subtitle.srt -tr facebook-m2m100 -tf small -o subtitle_aligned.srt -t src,tgt subaligner -m dual -v video.mp4 -s subtitle.srt -tr whisper -tf small -o subtitle_aligned.srt -t src,tgt
Transcribe audiovisual files and generate translated subtitles
subaligner -m transcribe -v video.mp4 -ml src -mr whisper -mf small -tr helsinki-nlp -o subtitle_aligned.srt -t src,tgt
Shift subtitle manually by offset in seconds
subaligner -m shift --subtitle_path subtitle.srt -os 5.5 subaligner -m shift --subtitle_path subtitle.srt -os -5.5 -o subtitle_shifted.srt
Run batch alignment against directories
subaligner_batch -m single -vd videos/ -sd subtitles/ -od aligned_subtitles/ subaligner_batch -m dual -vd videos/ -sd subtitles/ -od aligned_subtitles/ subaligner_batch -m dual -vd videos/ -sd subtitles/ -od aligned_subtitles/ -of ttml
Run alignments with pipx
pipx run subaligner -m single -v video.mp4 -s subtitle.srt pipx run subaligner -m dual -v video.mp4 -s subtitle.srt
Run the module as a script
python -m subaligner -m single -v video.mp4 -s subtitle.srt python -m subaligner -m dual -v video.mp4 -s subtitle.srt
Run alignments with the docker image
docker pull baxtree/subaligner
docker run -v pwd:pwd -w pwd -it baxtree/subaligner subaligner -m single -v video.mp4 -s subtitle.srt
docker run -v pwd:pwd -w pwd -it baxtree/subaligner subaligner -m dual -v video.mp4 -s subtitle.srt
docker run -it baxtree/subaligner subaligner -m single -v https://example.com/video.mp4 -s https://example.com/subtitle.srt -o subtitle_aligned.srt
docker run -it baxtree/subaligner subaligner -m dual -v https://example.com/video.mp4 -s https://example.com/subtitle.srt -o subtitle_aligned.srt
The aligned subtitle will be saved at subtitle_aligned.srt. To obtain the subtitle in raw JSON format for downstream
processing, replace the output file extension with .json. For details on CLIs, run subaligner -h or subaligner_batch -h,
subaligner_convert -h, subaligner_train -h and subaligner_tune -h for additional utilities. subaligner_1pass and subaligner_2pass are shortcuts for running subaligner with -m single and -m dual options, respectively.
Advanced Usage
You can train a new model with your own audiovisual files and subtitle files,
Train a custom model
subaligner_train -vd VIDEO_DIRECTORY -sd SUBTITLE_DIRECTORY -tod TRAINING_OUTPUT_DIRECTORY
Then you can apply it to your subtitle synchronisation with the aforementioned commands. For more details on how to train and tune your own model, please refer to Subaligner Docs.
For larger media files taking longer to process, you can reconfigure various timeouts using the following:
Options for tuning timeouts
-mpt [Maximum waiting time in seconds when processing media files] -sat [Maximum waiting time in seconds when aligning each segment] -fet [Maximum waiting time in seconds when embedding features for training]
Anatomy
Subtitles can be out of sync with their companion audiovisual media files for a variety of causes including latency introduced by Speech-To-Text on live streams or calibration and rectification involving human intervention during post-production.
A model has been trained with synchronised video and subtitle pairs and later used for predicating shifting offsets and directions under the guidance of a dual-stage aligning approach.

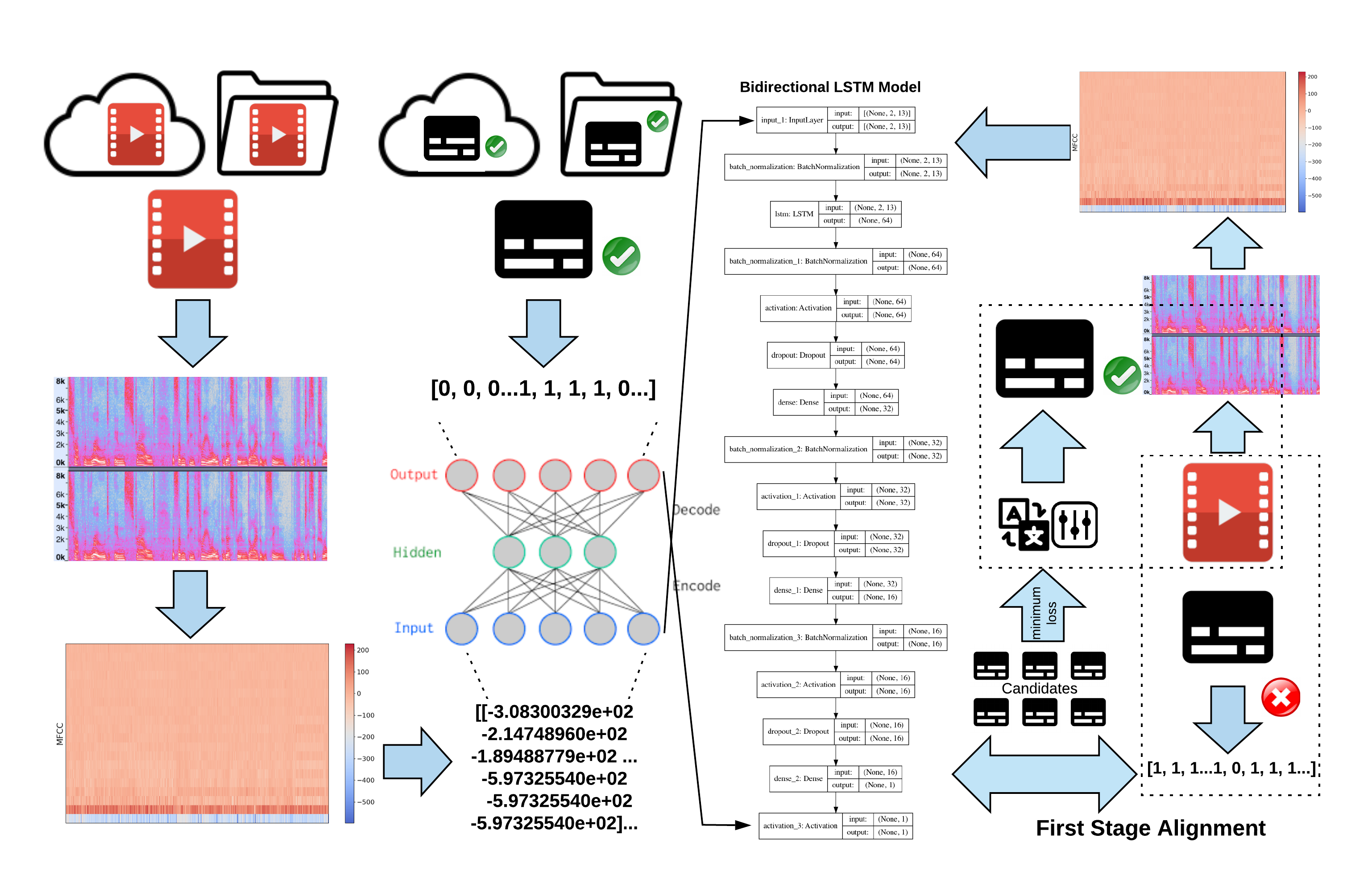

First Stage (Global Alignment):

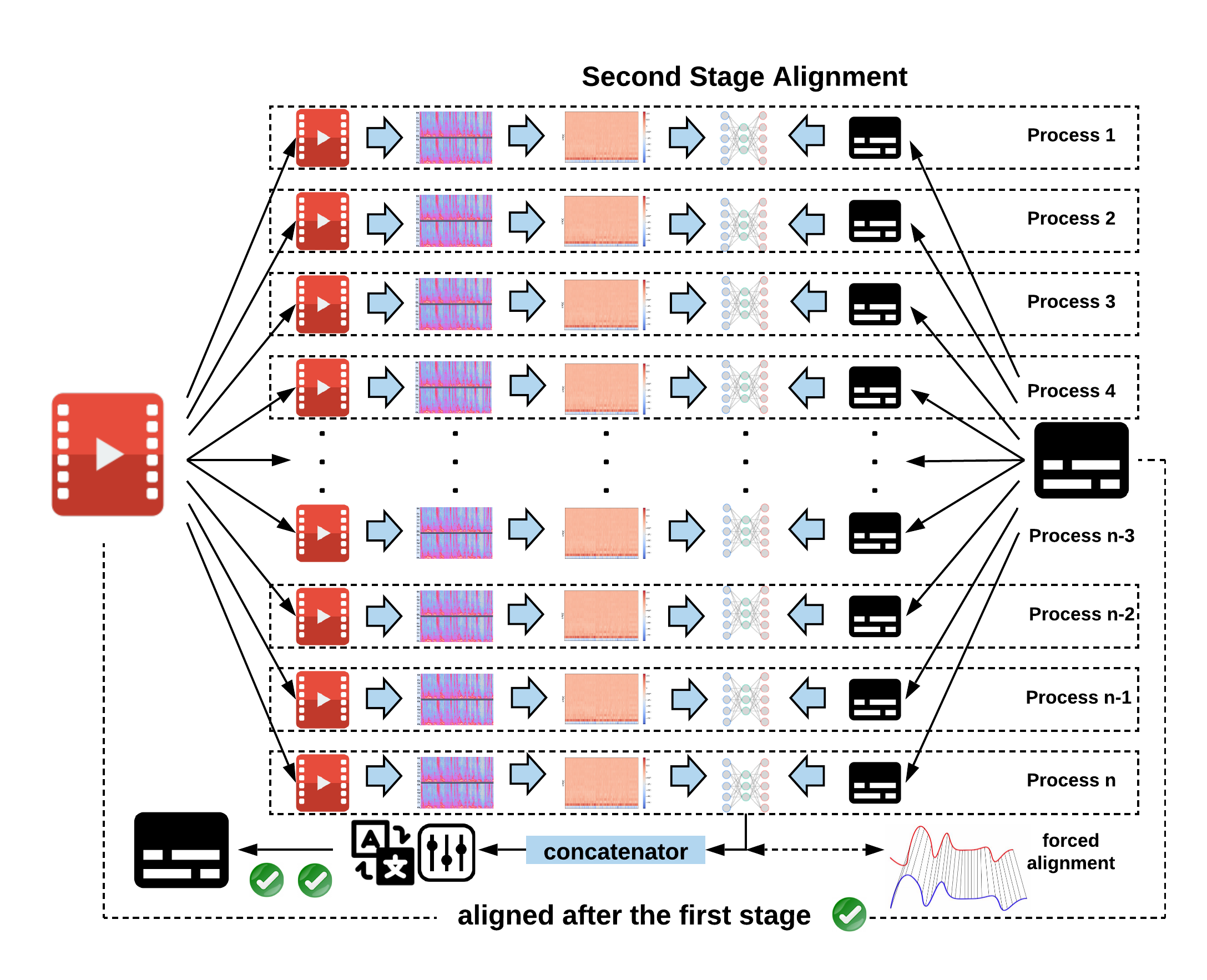

Second Stage (Parallelised Individual Alignment):
Acknowledgement
This tool wouldn't be possible without the following packages: librosa tensorflow scikit-learn pycaption pysrt pysubs2 aeneas transformers whisper.
Thanks to Alan Robinson and Nigel Megitt for their invaluable feedback.
