NeuralClassifier: An Open-source Neural Hierarchical Multi-label Text Classification Toolkit

Introduction

NeuralClassifier is designed for quick implementation of neural models for hierarchical multi-label classification task, which is more challenging and common in real-world scenarios. A salient feature is that NeuralClassifier currently provides a variety of text encoders, such as FastText, TextCNN, TextRNN, RCNN, VDCNN, DPCNN, DRNN, AttentiveConvNet and Transformer encoder, etc. It also supports other text classification scenarios, including binary-class and multi-class classification. It is built on PyTorch. Experiments show that models built in our toolkit achieve comparable performance with reported results in the literature.

Support tasks

Binary-class text classifcation
Multi-class text classification
Multi-label text classification
Hiearchical (multi-label) text classification (HMC)

Support text encoders

TextCNN (Kim, 2014)
RCNN (Lai et al., 2015)
TextRNN (Liu et al., 2016)
FastText (Joulin et al., 2016)
VDCNN (Conneau et al., 2016)
DPCNN (Johnson and Zhang, 2017)
AttentiveConvNet (Yin and Schutze, 2017)
DRNN (Wang, 2018)
Region embedding (Qiao et al., 2018)
Transformer encoder (Vaswani et al., 2017)
Star-Transformer encoder (Guo et al., 2019)
HMCN(Wehrmann et al.,2018)

Requirement

Python 3
PyTorch 0.4+
Numpy 1.14.3+

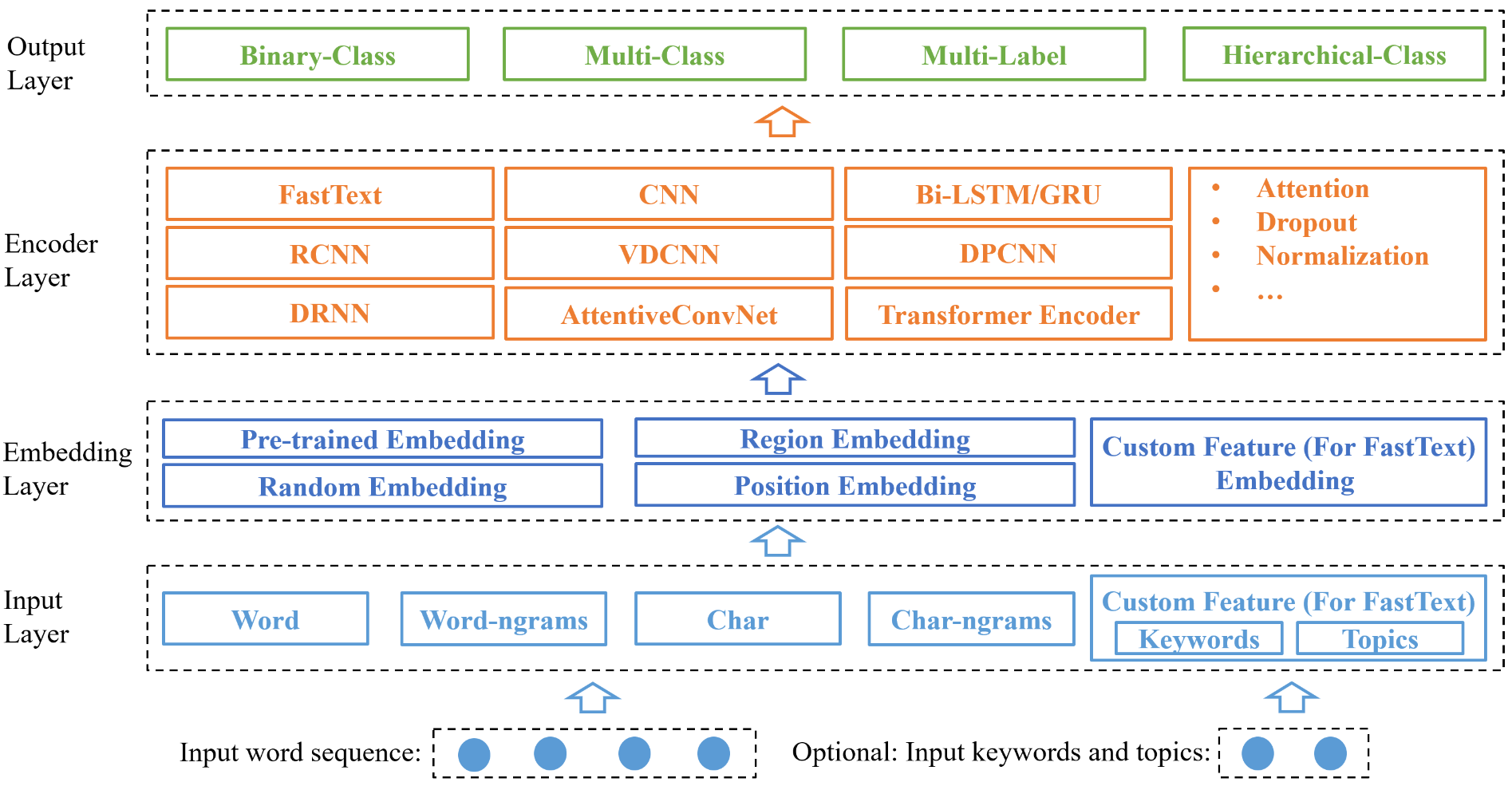

System Architecture

Usage

Training

How to train a non-hierarchical classifier

python train.py conf/train.json

set task_info.hierarchical = false.
model_name can be FastText、TextCNN、TextRNN、TextRCNN、DRNN、VDCNN、DPCNN、AttentiveConvNet、Transformer.

How to train a hierarchical classifier using hierarchial penalty

python train.py conf/train.hierar.json

set task_info.hierarchical = true.
model_name can be FastText、TextCNN、TextRNN、TextRCNN、DRNN、VDCNN、DPCNN、AttentiveConvNet、Transformer

How to train a hierarchical classifier with HMCN

python train.py conf/train.hmcn.json

set task_info.hierarchical = false.
set model_name = HMCN

Detail configurations and explanations see Configuration.

The training info will be outputted in standard output and log.logger_file.

Evaluation

python eval.py conf/train.json

if eval.is_flat = false, hierarchical evaluation will be outputted.
eval.model_dir is the model to evaluate.
data.test_json_files is the input text file to evaluate.

The evaluation info will be outputed in eval.dir.

Prediction

python predict.py conf/train.json data/predict.json

predict.json should be of json format, while each instance has a dummy label like "其他" or any other label in label map.
eval.model_dir is the model to predict.
eval.top_k is the number of labels to output.
eval.threshold is the probability threshold.

The predict info will be outputed in predict.txt.

Input Data Format

JSON example:

{
    "doc_label": ["Computer--MachineLearning--DeepLearning", "Neuro--ComputationalNeuro"],
    "doc_token": ["I", "love", "deep", "learning"],
    "doc_keyword": ["deep learning"],
    "doc_topic": ["AI", "Machine learning"]
}

"doc_keyword" and "doc_topic" are optional.

Performance

0. Dataset

Dataset Taxonomy #Label #Training #Test

RCV1 Tree 103 23,149 781,265

Yelp DAG 539 87,375 37,265

RCV1: Lewis et al., 2004
Yelp: Yelp

1. Compare with state-of-the-art

Text Encoders Micro-F1 on RCV1 Micro-F1 on Yelp

HR-DGCNN (Peng et al., 2018) 0.7610

HMCN (Wehrmann et al., 2018) 0.8080 0.6640

Ours 0.8313 0.6704

HR-DGCNN: Peng et al., 2018
HMCN: Wehrmann et al., 2018

2. Different text encoders

Text Encoders RCV1 Yelp

Micro-F1 Macro-F1 Micro-F1 Macro-F1

TextCNN 0.7717 0.5246 0.6281 0.3657

TextRNN 0.8152 0.5458 0.6704 0.4059

RCNN 0.8313 0.6047 0.6569 0.3951

FastText 0.6887 0.2701 0.6031 0.2323

DRNN 0.7846 0.5147 0.6579 0.4401

DPCNN 0.8220 0.5609 0.5671 0.2393

VDCNN 0.7263 0.3860 0.6395 0.4035

AttentiveConvNet 0.7533 0.4373 0.6367 0.4040

RegionEmbedding 0.7780 0.4888 0.6601 0.4514

Transformer 0.7603 0.4274 0.6533 0.4121

Star-Transformer 0.7668 0.4840 0.6482 0.3895

performance got with 300d pretrained glove embedding

3. Hierarchical vs Flat

Text Encoders Hierarchical Flat

Micro-F1 Macro-F1 Micro-F1 Macro-F1

TextCNN 0.7717 0.5246 0.7367 0.4224

TextRNN 0.8152 0.5458 0.7546 0.4505

RCNN 0.8313 0.6047 0.7955 0.5123

FastText 0.6887 0.2701 0.6865 0.2816

DRNN 0.7846 0.5147 0.7506 0.4450

DPCNN 0.8220 0.5609 0.7423
0.4261

VDCNN 0.7263 0.3860 0.7110 0.3593

AttentiveConvNet 0.7533 0.4373 0.7511 0.4286

RegionEmbedding 0.7780 0.4888 0.7640 0.4617

Transformer 0.7603 0.4274 0.7602 0.4339

Star-Transformer 0.7668 0.4840 0.7618 0.4745

Acknowledgement

Some public codes are referenced by our toolkit:

Update

2019-04-29, init version
