Compact Transformers

Preprint Link: Escaping the Big Data Paradigm with Compact Transformers

By Ali Hassani[1]*, Steven Walton[1]*, Nikhil Shah[1], Abulikemu Abuduweili[1], Jiachen Li[1,2], and Humphrey Shi[1,2,3]

*Ali Hassani and Steven Walton contributed equal work

In association with SHI Lab @ University of Oregon[1] and UIUC[2], and Picsart AI Research (PAIR)[3]

Other implementations & resources

[PyTorch blog]: check out our official blog post with PyTorch to learn more about our work and vision transformers in general.

[Keras]: check out Compact Convolutional Transformers on keras.io by Sayak Paul.

[vit-pytorch]: CCT is also available through Phil Wang's vit-pytorch, simply use pip install vit-pytorch

Abstract

With the rise of Transformers as the standard for language processing, and their advancements in computer vision, along with their unprecedented size and amounts of training data, many have come to believe that they are not suitable for small sets of data. This trend leads to great concerns, including but not limited to: limited availability of data in certain scientific domains and the exclusion of those with limited resource from research in the field. In this paper, we dispel the myth that transformers are “data hungry” and therefore can only be applied to large sets of data. We show for the first time that with the right size and tokenization, transformers can perform head-to-head with state-of-the-art CNNs on small datasets, often with bet-ter accuracy and fewer parameters. Our model eliminates the requirement for class token and positional embeddings through a novel sequence pooling strategy and the use of convolution/s. It is flexible in terms of model size, and can have as little as 0.28M parameters while achieving good results. Our model can reach 98.00% accuracy when training from scratch on CIFAR-10, which is a significant improvement over previous Transformer based models. It also outperforms many modern CNN based approaches, such as ResNet, and even some recent NAS-based approaches,such as Proxyless-NAS. Our simple and compact design democratizes transformers by making them accessible to those with limited computing resources and/or dealing with small datasets. Our method also works on larger datasets, such as ImageNet (82.71% accuracy with 29% parameters of ViT),and NLP tasks as well.

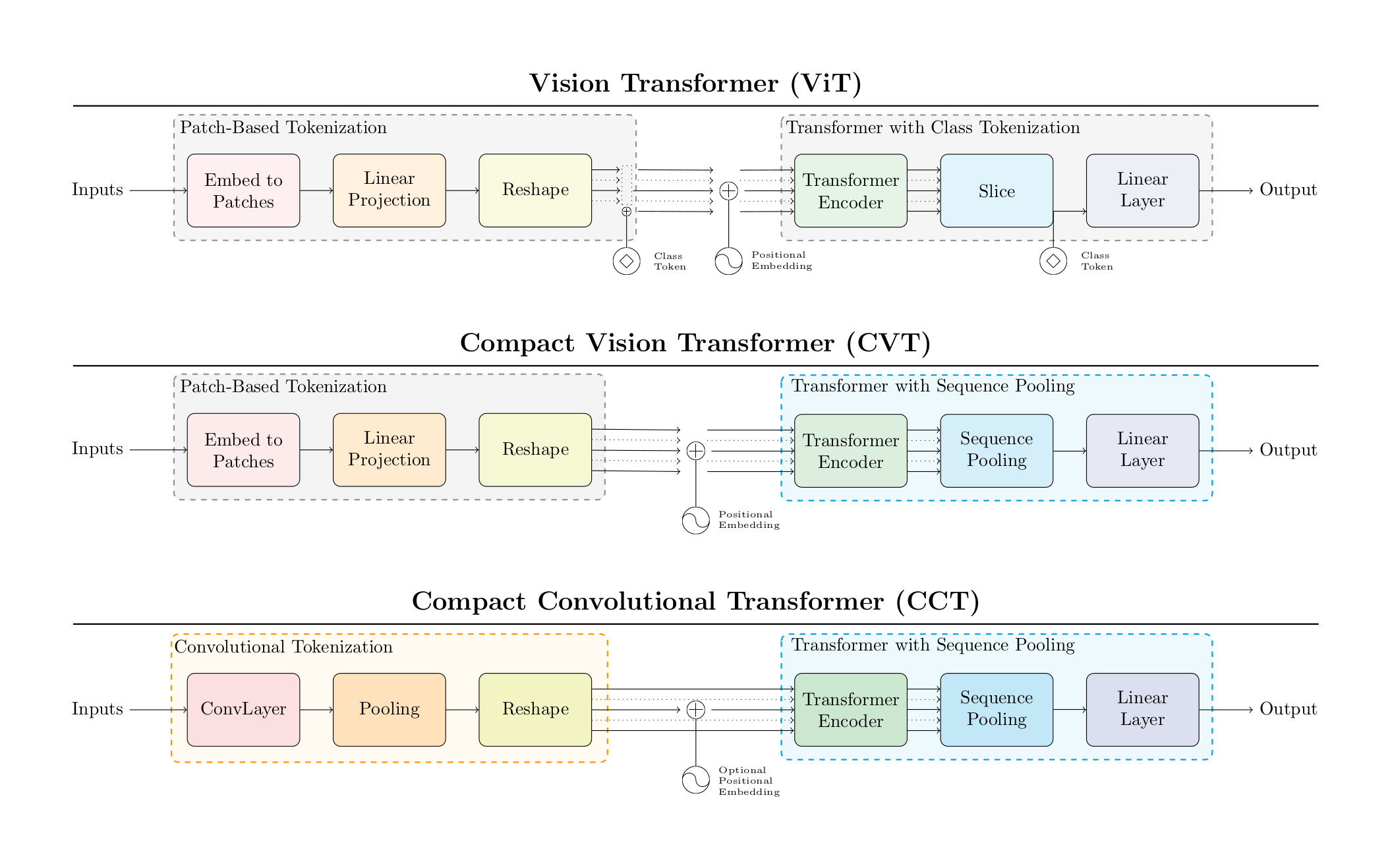

ViT-Lite: Lightweight ViT

Different from ViT we show that an image is not always worth 16x16 words and the image patch size matters. Transformers are not in fact ''data-hungry,'' as the authors proposed, and smaller patching can be used to train efficiently on smaller datasets.

CVT: Compact Vision Transformers

Compact Vision Transformers better utilize information with Sequence Pooling post encoder, eliminating the need for the class token while achieving better accuracy.

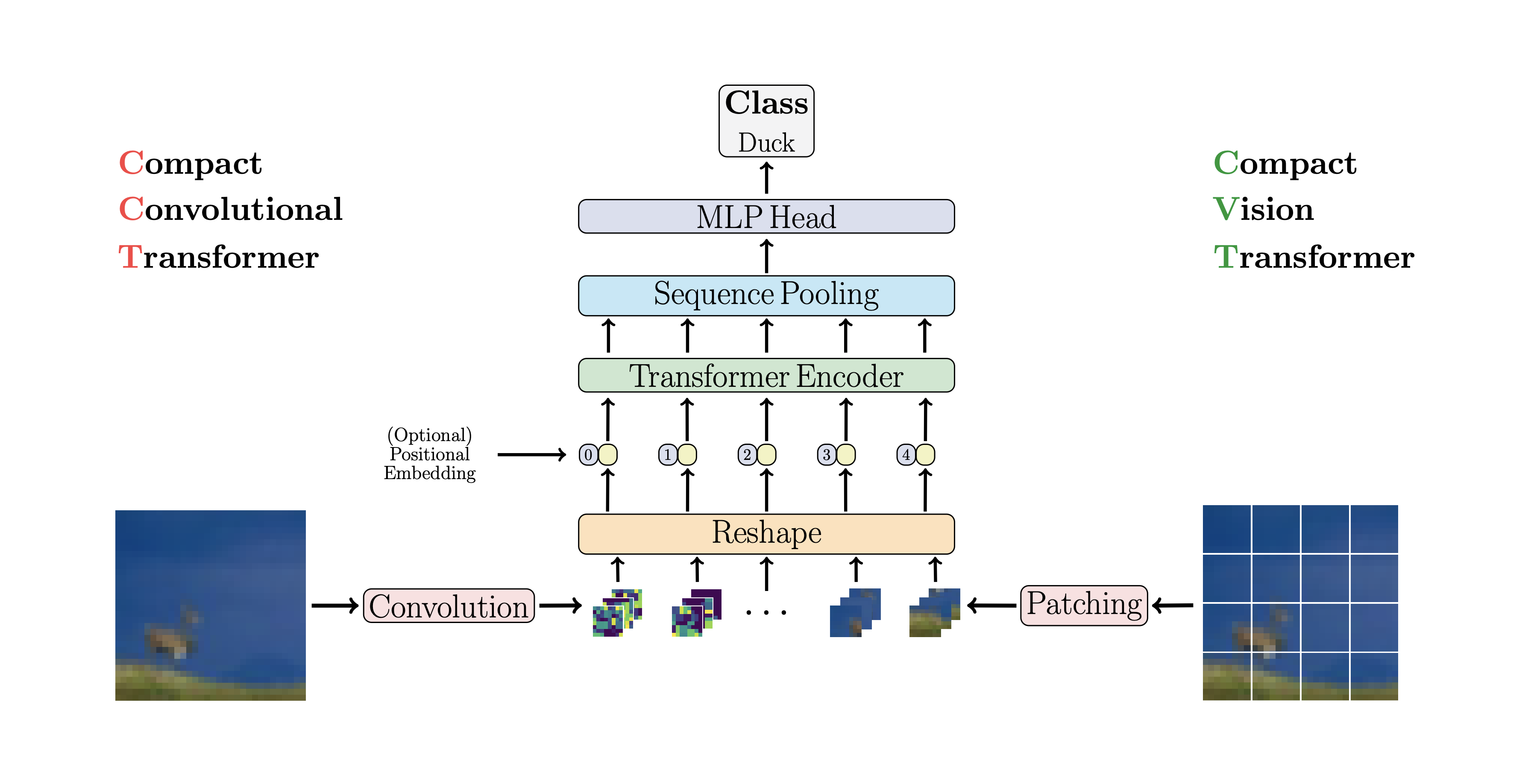

CCT: Compact Convolutional Transformers

Compact Convolutional Transformers not only use the sequence pooling but also replace the patch embedding with a convolutional embedding, allowing for better inductive bias and making positional embeddings optional. CCT achieves better accuracy than ViT-Lite and CVT and increases the flexibility of the input parameters.

How to run

Install locally

Our base model is in pure PyTorch and Torchvision. No extra packages are required. Please refer to PyTorch's Getting Started page for detailed instructions.

Here are some of the models that can be imported from src (full list available in Variants.md):

Model

Resolution

PE

Name

Pretrained Weights

Config

CCT-7/3x1

32x32

Learnable

cct_7_3x1_32

CIFAR-10/300 Epochs

pretrained/cct_7-3x1_cifar10_300epochs.yml

Sinusoidal

cct_7_3x1_32_sine

CIFAR-10/5000 Epochs

pretrained/cct_7-3x1_cifar10_5000epochs.yml

Learnable

cct_7_3x1_32_c100

CIFAR-100/300 Epochs

pretrained/cct_7-3x1_cifar100_300epochs.yml

Sinusoidal

cct_7_3x1_32_sine_c100

CIFAR-100/5000 Epochs

pretrained/cct_7-3x1_cifar100_5000epochs.yml

CCT-7/7x2

224x224

Sinusoidal

cct_7_7x2_224_sine

Flowers-102/300 Epochs

pretrained/cct_7-7x2_flowers102.yml

CCT-14/7x2

224x224

Learnable

cct_14_7x2_224

ImageNet-1k/300 Epochs

pretrained/cct_14-7x2_imagenet.yml

384x384

cct_14_7x2_384

ImageNet-1k/Finetuned/30 Epochs

finetuned/cct_14-7x2_imagenet384.yml

384x384

cct_14_7x2_384_fl

Flowers102/Finetuned/300 Epochs

finetuned/cct_14-7x2_flowers102.yml

You can simply import the names provided in the Name column:

from src import cct_14_7x2_384
model = cct_14_7x2_384(pretrained=True, progress=True)

The config files are provided both to specify the training settings and hyperparameters, and allow easier reproduction.

Please note that the models missing pretrained weights will be updated soon. They were previously trained using our old training script, and we're working on training them again with the new script for consistency.

You could even create your own models with different image resolutions, positional embeddings, and number of classes:

from src import cct_14_7x2_384, cct_7_7x2_224_sine
model = cct_14_7x2_384(img_size=256)
model = cct_7_7x2_224_sine(img_size=256, positional_embedding='sine')

Changing resolution and setting pretrained=True will interpolate the PE vector to support the new size, just like ViT.

These models are also based on experiments in the paper. You can create your own versions:

from src import cct_14
model = cct_14(arch='custom', pretrained=False, progress=False, kernel_size=5, n_conv_layers=3)

You can even go further and create your own custom variant by importing the class CCT.

All of these apply to CVT and ViT as well.

Training

timm is recommended for image classification training and required for the training script provided in this repository:

Distributed training

./dist_classification.sh $NUM_GPUS -c $CONFIG_FILE /path/to/dataset

You can use our training configurations provided in configs/:

./dist_classification.sh 8 -c configs/imagenet.yml --model cct_14_7x2_224 /path/to/ImageNet

Non-distributed training

python train.py -c configs/datasets/cifar10.yml --model cct_7_3x1_32 /path/to/cifar10

Models and config files

We've updated this repository and moved the previous training script and the checkpoints associated with it to examples/. The new training script here is just the timm training script. We've provided the checkpoints associated with it in the next section, and the hyperparameters are all provided in configs/pretrained for models trained from scratch, and configs/finetuned for fine-tuned models.

Results

Type can be read in the format L/PxC where L is the number of transformer layers, P is the patch/convolution size, and C (CCT only) is the number of convolutional layers.

CIFAR-10 and CIFAR-100

Model

Pretraining

Epochs

PE

CIFAR-10

CIFAR-100

CCT-7/3x1

None

300

Learnable

96.53%

80.92%

1500

Sinusoidal

97.48%

82.72%

5000

Sinusoidal

98.00%

82.87%

Flowers-102

Model

Pre-training

PE

Image Size

Accuracy

CCT-7/7x2

None

Sinusoidal

224x224

97.19%

CCT-14/7x2

ImageNet-1k

Learnable

384x384

99.76%

ImageNet

Model

Type

Resolution

Epochs

Top-1 Accuracy

Params

MACs

ViT

12/16

384

300

77.91%

86.8M

17.6G

CCT

14/7x2

224

310

80.67%

22.36M

5.11G

14/7x2

384

310 + 30

82.71%

22.51M

15.02G

NLP

NLP results and instructions have been moved to nlp/.

Citation

@article{hassani2021escaping,
	title        = {Escaping the Big Data Paradigm with Compact Transformers},
	author       = {Ali Hassani and Steven Walton and Nikhil Shah and Abulikemu Abuduweili and Jiachen Li and Humphrey Shi},
	year         = 2021,
	url          = {https://arxiv.org/abs/2104.05704},
	eprint       = {2104.05704},
	archiveprefix = {arXiv},
	primaryclass = {cs.CV}
}
