BigMoeOnEdge

Run Mixture-of-Experts models bigger than your device's RAM.

A Mixture-of-Experts model uses only a few of its experts for each token. BigMoeOnEdge keeps the always-needed part of the model in RAM and reads the experts a token asks for from storage, when it asks. The rest stays on disk, so a model several times larger than RAM runs, and the output is byte-identical to running it fully resident.

• On llama.cpp's public API. Every quantization, tokenizer and chat template llama.cpp supports works unchanged. A new MoE architecture is one registry row; a new llama.cpp release is a submodule bump.
• It configures itself. --auto measures the machine (memory, storage, cores, accelerators), reads the model's shape and derives the streaming settings, with the fact behind each one. The goal is the best streaming for any MoE model on any hardware: a phone with an NPU and an Apple-silicon laptop, for example, each get a different plan from the same rules.
• One engine, one application layer. bmoe-server is what every UI talks to: the Android app runs it as a process of its own, the desktop serves a web UI from it, and both offer an OpenAI-compatible API that, with a key, serves other machines too. What runs on each platform: docs/platforms.md.

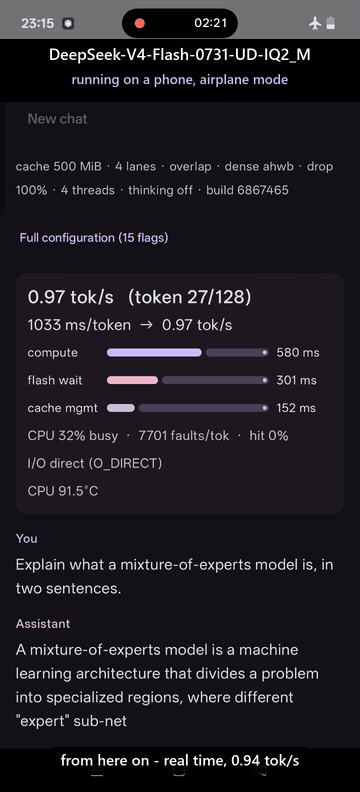

DeepSeek V4 Flash 0731: 284B parameters, ~91 GB on disk, on a 12 GB phone. 0.94 tok/s in the demo app, real time.

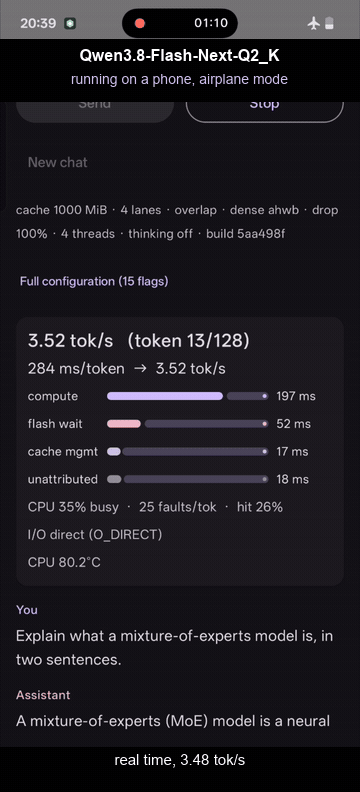

Qwen3.8-Flash-Next: 125B parameters, ~80 GB on disk (Q2_K), on a 12 GB phone. 3.48 tok/s in the demo app, real time.

Qwen3.8-Flash-Next ran on that phone the day its weights appeared, before upstream supported it. Three more, one after another on the same phone:

https://github.com/user-attachments/assets/f899b93f-c7c4-4ce9-9fb0-5ed1bae13761

Left to right: gpt-oss-120b (~60 GB), Qwen3-30B-A3B (18.5 GB), Gemma-4-26B-A4B (17 GB), recorded in the demo app on a 12 GB phone, real time, not sped up.

Table of contents

• Why
• Try it
• Automatic configuration (--auto)
• Settings
• Supported models
• Benchmarks
• Build from source
• How it works
• Documentation
• Prior art
• License

Why

Mainstream runtimes hold or page the whole model file. Past RAM that means refusing to load, or thrashing. Streaming changes three cases:

• Far past RAM. A ~60 GB model on a 12 GB phone cannot be resident. Streamed, it runs.
• Just past RAM. An 18 to 22 GB model on a 12 GB phone turns ordinary loading into a fault storm. Streamed, it runs stably at up to 5 tok/s with byte-identical output.
• Barely fits. The model runs inside a memory budget you choose and leaves the rest of the system alone.

Decode runs on the CPU. Prefill can run on a Snapdragon's Hexagon NPU or an Apple GPU.

Try it

Phone. Install the APK from the latest release. On the Models screen, pick a model from the catalog or paste any direct gguf URL under Get a model. Models split into shards download and load as they are, with no merge step. The planner configures every load and the Plan screen shows why. Serve on the network, in Settings, lets any OpenAI-compatible client on your network use the phone, with a generated key.

Desktop. Download the bmoe-desktop archive from the same release and start bmoe-server. The UI opens at http://127.0.0.1:8765/ (this machine only; --port changes it): pick a model, let the planner configure it, chat. Any OpenAI client can use the same address, and --host with --api-key serves it to other machines (docs/server-api.md).

Both show the same five screens: chat, models, plan, settings and metrics (docs/screens.md).

Command line. See Build from source.

Automatic configuration (--auto)

bmoe-cli -m model.gguf --auto -p "Explain MoE routing."   # measure, plan, run
bmoe-cli -m model.gguf --plan                              # print the plan and exit

 model.gguf metadata --+
                       +--> regime: fits | experts-stream | dense-oversized
 machine, measured ----+
   -> memory ledger: buffers, prefill device, dense set, expert cache
   -> I/O and compute: read lanes, threads, graph width, prefill device
   -> plan: each setting, the fact behind it, the flags that reproduce it

A setting passed by hand is never overruled. The rules name no platform or device; each machine answers the same questions through its own probes. Rules, and what each was measured on: docs/hardware-planning.md.

Settings

The ones that matter most when setting things by hand:

Those change how weights are fetched, never the result. These trade quality for fewer reads, for a model so far past memory that the alternative is no answer:

--mtp and --ngram draft several tokens and verify them in one decode, with no loss. --decide answers a multiple-choice prompt from one prefill, with no decode (docs/decide.md). Every setting, with its values and measurements: docs/settings.md.

Supported models

Expert counts and layouts are read from the model file at runtime. bmoe-cli --list-archs prints the compiled-in set; adding one: docs/adding-a-model.md.

Benchmarks

Measured, tok/s, on a 12 GB phone with UFS 4.x storage. All models Q4_K_M.

Best observed per configuration, 256-token greedy decode (Qwen3.6: a single 96-token run); gpt-oss with reasoning off. Phone throughput moves with heat and free memory. Every row, the configurations behind it and the method: docs/benchmarks.md, docs/benchmark-method.md.

Prefill on the NPU (same phone, Hexagon v81; decode stays on the CPU):

Off by default; the NPU computes in fp16, so its output is not identical to the CPU's. docs/npu-prefill.md.

Desktop. Windows x86 laptop, 16 GB, Qwen3.6-35B-A3B set by hand: 4.8 tok/s lossless, 7.3 with cold experts dropped. Apple-silicon laptop, 16 GB, same model with --auto alone: 22.4 tok/s, and a 10850-token prompt prefilled in 31.8 s. One machine each.

The rows above come from one phone and two laptops. To add your machine, one command runs the fixed protocol and prints a table to paste into a benchmark report:

scripts/bench-report.sh /path/to/any-moe-model.gguf

Build from source

git clone --recursive https://github.com/Helldez/BigMoeOnEdge.git
cd BigMoeOnEdge
scripts/build-host.sh
build/bin/bmoe-cli -m Qwen3-30B-A3B-Q4_K_M.gguf --auto --chatml -p "Explain MoE routing."

The same run with the settings given by hand:

build/bin/bmoe-cli -m Qwen3-30B-A3B-Q4_K_M.gguf --moe-stream \
  --cache-mb auto --cache-ceil-mb 4000 --io-threads 4 -t 4 -n 48 \
  --chatml -p "Explain MoE routing."

Desktop app, from source (the UI is built first so the CMake build can place it beside the server):

cd ui && npm ci && npm run build && cd ..
scripts/build-host.sh
build/bin/bmoe-server --open

Android: scripts/build-android.ps1 builds the engine and the server for arm64, then the APK in examples/android. A model pushed by hand for the CLI over adb must sit on a real filesystem (/data/local/tmp/..., not /sdcard). Tests: cd build && ctest --output-on-failure (needs python3 with the gguf package).

Android, macOS, Linux and Windows have release builds; iOS builds as a measuring harness (examples/ios). On Windows, build with CMake: the script is bash. What each platform runs, what CI checks on it and what was measured there: docs/platforms.md.

How it works

The model loads file-backed and the engine hooks llama.cpp's public evaluation callback:

 layer L picks its top-k experts            (llama.cpp, public callback)
   -> in the cache: use it  |  not in the cache: read its slices from flash
   -> point the layer's expert tensors at those bytes
   -> llama.cpp runs the matmul as if they had been resident

The dense weights are read on every token and stay in RAM; only the experts, most of the file, are streamed. No llama.cpp source is modified, with one exception: --overlap needs a wait point no public API exposes, carried as a single ~25-line hook on a fork branch and dropped when upstream ships an equivalent. docs/architecture.md, docs/seam.md.

Correctness is a gate, not a benchmark: ctest asserts that streaming only the routed experts gives output identical to running with every expert resident, across the cache, evictions, overlap, prefetch, sessions and split models.

Every run accounts for its own time: --progress splits each token into flash I/O, cache management and compute, and --csv adds the memory picture. The apps show the same feed live. docs/telemetry.md.

Documentation

docs/ is indexed by what you are trying to do. Entry points:

• architecture.md: the layer map and the llama.cpp relationship.
• hardware-planning.md: --auto and the rules behind each choice.
• settings.md: every setting.
• platforms.md: what runs on each operating system and backend.
• application-framework.md and server-api.md: the server every UI talks to, and its HTTP API.
• screens.md: the five screens every UI shows, specified once.
• design.md: the visual language, pixel, from the logo: palette, type, geometry.
• adding-a-model.md: supporting a new MoE architecture.
• benchmarks.md and benchmark-method.md: results and how they were produced.
• community-benchmarks.md: results on hardware we do not own.
• limitations.md: what this does not do.
• roadmap.md: where the project is going, and what was measured and refuted.

Prior art

An engineering package of ideas from AirLLM, Apple's LLM in a flash, FlexGen, PowerInfer and EdgeMoE, not a novel technique. The closest recent work is flash-moe, a purpose-built Metal engine that streams a 397B MoE from SSD on Apple Silicon. BigMoeOnEdge takes the other side: llama.cpp's public API, across architectures and platforms. The cache-aware routing behind --expert-substitute is the rerouting of Skliar et al. (arXiv:2412.00099), applied to a RAM cache in front of flash.

License

Apache-2.0. See LICENSE.
