openTPU

An open-source AI accelerator, developed by AI.

openTPU brings the lessons of auto-arch-tournament to AI accelerators. It asks two questions: how far can AI agents go at hardware design, and can they build the chip that runs their own inference?

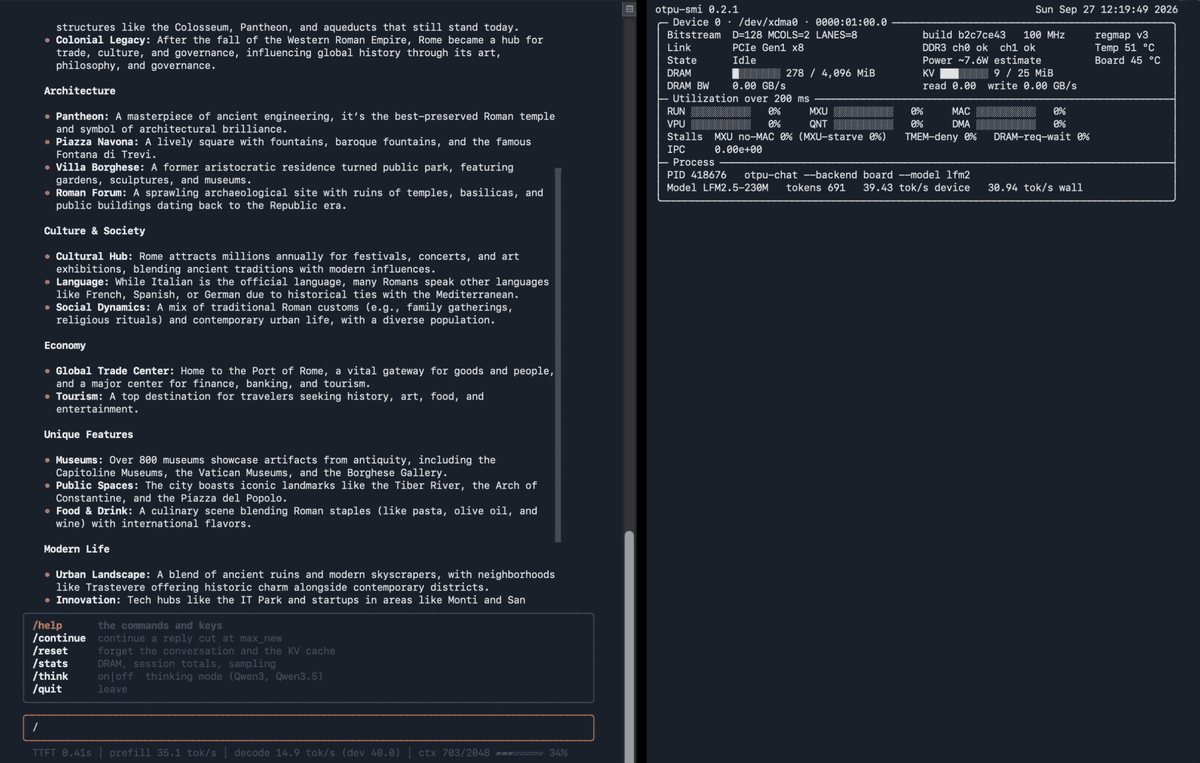

otpu-chat running LFM2.5-230M on the FPGA card (left), with otpu-smi showing the card's utilization and DRAM bandwidth (right).

A place to learn

openTPU is also a learning project. The whole accelerator lives in one small monorepo that you can read end to end: the hardware design (SystemVerilog), the instruction set, a bit-exact simulator, a kernel language and its compiler, and the host software that drives a real PCIe card. If you want to understand how an AI accelerator works, from a matmul in Python down to the wires, this is a good place to start.

Results

The design runs ten modern models with their real weights on an Inspur YPCB-00338 card (Xilinx Kintex-7 xc7k480t, two DDR3 channels), and the card produces the same tokens as the simulator, bit for bit.

Measured on the card: the first three models on 2026-09-29 with the production image deploy_champ_e698dcd7. LFM2-2.6B, SmolLM3-3B and Phi-4-mini on 2026-09-30, and Qwen3.5-2B and 4B and Gemma 4 on 2026-10-01, with build B, deploy_fused133c_79c5707a, production since then. Build B decodes LFM2-2.6B, SmolLM3 and Phi-4-mini 8-9% faster than e698dcd7 (Gemma 4 E2B 10%), at 91-94% of the DRAM peak instead of 82-87%. Qwen3.5-4B's int8 image is over 4 GiB.

• The image: main e698dcd at 133.33 MHz, one bitstream for all models. It has LiteDRAM controllers calibrated by a small CPU inside the memory core, a four-column systolic matrix unit and the stream engine (docs/stream.md). DDR3-1066, with a 17.1 GB/s peak.
• The host: the card sits in opentpu (Intel Core i7-4790).
• Method, tools/qual/perf.py: decode is 64 greedy tokens after a 512-token prompt, with the host's argmax in the loop (not streamed). "Device" counts only the cycles the accelerator runs; "wall" adds the host. Prefill is the 512-token prompt, on the device.
• DRAM traffic comes from the card's own counters while it runs.
• Gemma 4 E2B keeps its per-layer embedding tables on the card (3.5-3.6 GiB images; docs/gemma4.md); in int8 it does not fit. The base checkpoint (gemma-4-E2B) matches Hugging Face's greedy tokens on three prompts with either head. The chat runs the instruct checkpoints (gemma-4-E2B-it, ...: the same images and speeds). E4B's table (2.95 GB) stays on the host, which copies one 11 KB row into the card per token; its image is 3.96 GiB, int8 with the head and the first 24 layers' down projections in 4-bit, as measured here (docs/gemma4_e4b.md). Since 2026-10-09 E4B-it's default is the head and the first 12 layers' gate / up projections in 4-bit: the same bytes a token, perplexity within 0.01% of int8's instead of +3.2%, and prompt runs of 2 rows instead of 3-4 (docs/formats.md). In the card's own decode loop (the card picking every token) Gemma 4 decodes faster: E2B 11.01 / 12.73 tok/s (int8 / 4-bit head), E4B 3.83 tok/s, on the device.
• Every configuration matches the simulator token for token, per-position and with the resident decode program. More detail in docs/board.md.

With the logits streamed back while the card runs (tools/decode_profile.py, 96 tokens), 4-bit decode is faster, in device / wall tok/s:

• LFM2: 89.5 / 84.5;
• Qwen3: 33.7 / 33.3;
• Qwen3.5: 24.6 / 24.2;
• LFM2-2.6B: 11.07 / 11.02 (build B);
• SmolLM3-3B: 8.92 / 8.89 (build B);
• Phi-4-mini: 6.69 / 6.67 (build B).

The previous production image, se-cand3, was built with the Xilinx MIG, a two-column matrix unit and a 120.755 MHz clock. Measured the same way, the new image:

• decode: within 2.3% of se-cand3's in every configuration. Decode is bound by DRAM, and LiteDRAM reads at 82-85% of the DDR3 peak, as the MIG did.
• prefill: 1.3x (Qwen3.5) to 2.0x (LFM2 4-bit) faster.
• calibration: when the image starts, the core's CPU calibrates both DDR3 channels in 12 s, with no host involvement.

The earlier images and their numbers are in docs/board.md, section 5.

Mixture-of-experts models bigger than the card's 4 GiB run with their experts streamed from host storage (docs/offload.md, section 10). The card routes each token and computes every expert, and it keeps the experts in per-layer slots in its DRAM. The host only copies missing experts from a pool file into those slots, at the link's rate (section 10.1). Measured on 2026-10-01 with build B (79c5707a), the card's own decode loop picking every token, 4-bit experts, int8 head:

• LFM2.5-8B-A1B (8.5B parameters, 1.7B active): 10.6 tok/s over 160 tokens. 98.5% of expert uses hit the slots, and 5.2 MB streamed per token.
• Qwen3.5-35B-A3B (34.7B parameters, 3.0B active): 3.95 tok/s, with Hugging Face's 16 greedy tokens. 62% of expert uses hit, and 153 MB streamed per token at 1.41 GB/s over PCIe (section 10.3).
• Both match the simulator bit for bit.

otpu-chat chats with both, and with gemma-4-26B-A4B-it (--model lfm2-8b, qwen35-35b, gemma4-26b), with the same engine and settings. Each model's experts are packed once into a pool file beside its checkpoint, and the chat checks the pool before it loads (docs/offload.md, section 14).

4-bit weights (docs/quant.md) use FP4 values with two-level block scales, 4.25 bits per weight, and keep the LM head in int8 for accuracy. They cut the bytes per token by about a third and raise decode speed by 40% (Qwen3.5) to 45% (Qwen3, LFM2), at a measurable cost in perplexity that docs/quant.md reports per model.

The host is nearly out of the way. For LFM2 and Qwen3 the card runs one decode program compiled once, which reads the position from a register and looks up its own embedding and RoPE rows, and the logits stream back while the card is still running: the host adds 0.17 to 0.30 ms per token on omarchy (0.45 to 1.3 ms on opentpu). Qwen3.5 runs the same way for decode; its prefill still compiles each chunk's program on the host, ahead of the card.

How it works

  Kernels in ol              mlp, attention, full model layers
        |  @ol.jit
  Language + compiler        layouts, affine loop addressing, fusion
        |
  ISA                        8 x 32-bit words per instruction
        |
  ISA simulator  <======>  RTL          same bits, checked by the tests
  (Python)                 (SystemVerilog)
                            |  Vivado bitstream
                           FPGA card    Kintex-7 xc7k480t
                            |  PCIe
                           Host         otpu-chat, otpu-smi, otpu-lens

The machine is deliberately simple. A sequencer issues one instruction per cycle to a few units: DMA moves data, the matrix unit multiplies int8 weights streamed from DRAM, the vector unit does fp32 math, and a quantizer turns results back into int8. There is no cache and no hidden scheduling: every data movement is an instruction, so a trace shows exactly where the cycles go. docs/isa.md describes the whole instruction set.

A kernel looks like this:

from opentpu import language as ol

@ol.jit
def mlp(h, gamma, w_gate, w_up, w_down, out, eps):   # simplified; see kernels/mlp.py
    x = ol.load(h)
    xs = ol.quantize(rmsnorm(x, ol.load(gamma), eps))
    g = ol.dot(xs, w_gate)
    u = ol.dot(xs, w_up)
    a = ol.all_gather(silu(g) * u)
    y = ol.all_gather(ol.dot(a, w_down))
    if ol.program_id() == 0:
        ol.store(out, x + y)

Because every data movement is an instruction, a trace of a run explains its speed. Lens, the profiler, records a run from the RTL, the simulator or the card and opens it in the browser, with a roofline, a timeline and per-instruction tables (docs/lens.md).

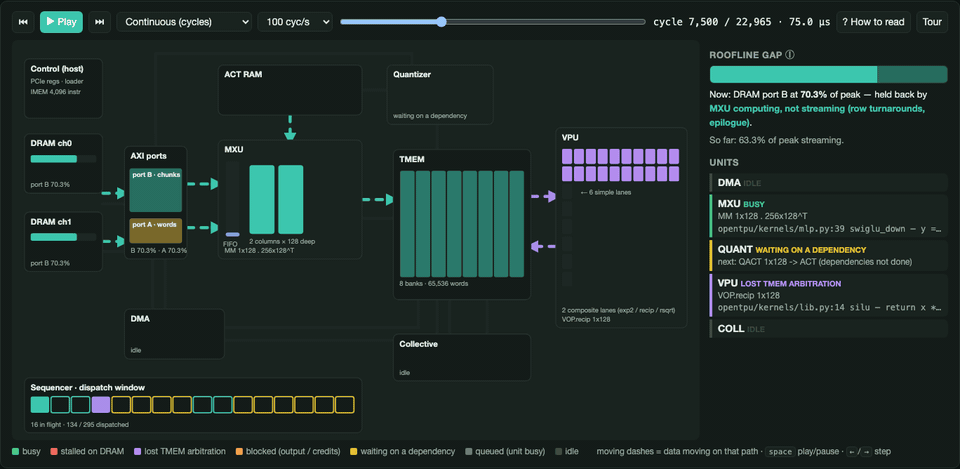

Lens replaying part of a Qwen3 decode step. Colours show what each unit is doing in each cycle: busy, waiting on DRAM, or waiting on another instruction.

Try it

Everything except the card runs on a laptop.

pip install -e .
pip install pytest torch transformers
python3 -m pytest -q          # RTL tests also need Verilator 5

hf download LiquidAI/LFM2.5-230M --local-dir models/LFM2.5-230M
otpu-chat --model lfm2 --backend isa    # chat on the simulator

With a card, build the bitstream (make bit in boards/ypcb-00338), load it over JTAG, then run sudo otpu-setup and otpu-chat --backend board. docs/board.md walks through the bring-up.

Validating against Hugging Face

tools/validate.py checks a device's greedy tokens and logits against a CPU golden: the same checkpoint in Hugging Face transformers, fp32 on the CPU, with openTPU's quantization. The golden's weights are the values the matrix unit multiplies (the model image's own quantizer, in the formats you pick), and its activations are rounded to int8 per 128 values wherever the device's quantizer rounds them: every matmul input, and in attention the query, K, V and the softmax weights. The device is the ISA simulator, the RTL (Verilator) or the card, and --against adds a second device that must give the same tokens and bit-identical logits. It is measured on Qwen3-0.6B, LFM2.5-230M, Qwen3.5-0.8B and Gemma 4 E2B (base and instruct); the MoE models are not supported.

python3 tools/validate.py --model qwen3                                    # ISA simulator, int8
python3 tools/validate.py --model lfm2 --wformat fp4 --head-format int8   # 4-bit layers
python3 tools/validate.py --model gemma4                                   # E2B-it: 16 GB (below)

# the RTL against the ISA simulator, bit for bit: slow, so one prompt and a few tokens
# (this one takes 4 minutes on a 16-core host, the Verilator build included)
python3 tools/validate.py --model lfm2 --backend rtl --against isa --tokens 3 "The capital of France is"

# the card against the ISA simulator, bit for bit, on the card host
otpu-lock -- python3 tools/validate.py --model qwen3 --backend board --against isa

# or only the card's run under the lock, and the rest on another host: the ISA simulator then
# runs in the configuration the card ran in
otpu-lock -- python3 tools/validate.py --model qwen3 --backend board --no-golden --save card.npz
python3 tools/validate.py --model qwen3 --against card.npz

Each prompt (eight by default, 16 tokens each) prints the device's continuation and the goldens'. Then the device's own tokens are fed to the golden, so that every step compares the same context, and the tool prints the top-1 agreement, the mean and largest KL divergence, the largest logit difference and the lowest cosine. The summary has four rows:

The golden cannot round exactly as the device does: its sums, norms and exponentials differ in the last bits. Once one int8 value rounds the other way, the difference spreads through the layers after it. So on a real model the device sits about as far from the quantized golden as the golden sits from itself after a one-ulp nudge, and a healthy device is near that floor. With 4-bit weights the floor is far below the fp32 rows. Measured on the ISA simulator, with the eight default prompts and 16 tokens each:

KL is the mean KL(golden || device) in nats per token. The device's KL from the quantized golden is 0.70 to 1.16 times the floor's, and its distance from fp32 is what the quantization alone predicts. A run takes 2 to 14 minutes on a 16-core host (Gemma 4 E2B: 16 and 26, the host shared with other jobs; E2B-it 8 to 14 on omarchy alone) and peaks at 2.5 GB (LFM2) to 16 GB (Gemma 4 E2B). Gemma 4 E2B-it, the instruct checkpoint otpu-chat runs (2026-10-09, tree aa2166b1), answers most prompts in a few tokens and stops at its end of turn (): its rows have 71 to 81 positions against the base's 128, so one position weighs more. The mix's 1.80x is one position of 71, a near tie in `def fibonacci(n):`'s (KL 0.69, the floor's 0.17 there); without it, 0.75x. The prompts are plain text after , as the base's, which the instruct tokenizer does not add (gemma4.text_ids).

Qwen3's activation rounding costs more than the other models': its k_norm gains have outlier channels (Qwen3-0.6B: up to 42 times their median), and K is rounded to int8 with one scale per token, head and 128 values, so the other channels, the ones the attention scores depend on, were left with a few levels. Its int8 W+A golden was 0.042 from fp32, against 0.0050 for LFM2.5-230M and 0.0029 for Qwen3.5-0.8B. The image now moves the outliers' magnitude from K into q (a power of two per channel in the q_norm and k_norm gains, which leaves q . K unchanged; docs/quant.md, "K smoothing"): 0.012 in the table. On two fixed texts (2,046 positions, paired) it takes the int8 W+A golden's KL from 0.059 to 0.015 and the 4-bit one's from 0.221 to 0.179, and the ISA simulator's on 512 of them from 0.064 to 0.019 (int8) and from 0.228 to 0.195 (4-bit, int8 head). The 4-bit row's 128 greedy positions are too few to show that drop (each run is on its own tokens, and a few positions dominate).

Gemma 4 runs in its image's formats, which follow the card's fit (E2B's int8 image keeps its per-layer-embedding table in 4-bit). The golden takes its embedding rows from the LM head, as the device gathers them, its per-layer embeddings from the device's PLE records, and it compares the logits after the soft cap. E2B in fp32 is about 20 GB, so Hugging Face loads the language model alone, without its 9.4 GB PLE table (the golden reads the rows it needs from the checkpoint), and the golden keeps the bf16 checkpoint's weights in bf16, which is exact, and widens them a matrix at a time for its fp32 passes. An E2B run peaks at 16 GB: give it a host with 22 GB free.

A run passes when the device agrees with the quantized golden on at least 80% of the top-1 tokens and its mean KL is at most three times the floor's (--min-top1, --kl-ratio), and, with --against, when both devices give the same tokens and bit-identical logits. The exit status is 0 for PASS and 1 for FAIL, and --json writes every step for scripts. --weights-only drops the activation rounding from the golden (then only the top-1 bound holds), and --no-fp32 skips the fp32 rows.

On the card (build 1025907f, 2026-10-07: --no-golden --save under the lock, --against on a build host), all six runs of Qwen3-0.6B, LFM2.5-230M and Qwen3.5-0.8B, in int8 and in 4-bit with an int8 head, gave the ISA simulator's tokens and bit-identical logits on every prompt (0 ulp over 103 to 128 steps a run). The card's mean KL from the quantized golden was 0.94 to 1.39 times the floor, with 94.5% to 97.7% top-1 agreement. Qwen3-0.6B int8's KL from fp32 on the card went from 0.052 (build 84989047, before K smoothing) to 0.012.

Where to start reading

1. docs/isa.md: the instruction set. Everything else is built on it.
2. opentpu/kernels and docs/compiler.md: how a kernel becomes instructions.
3. opentpu/isasim.py: the simulator, which is the spec.
4. rtl/: the hardware, starting from rtl/top/otpu_top.sv.
5. docs/lfm2.md, docs/qwen35.md, docs/llama.md, docs/benchmarks.md: whole models and where their cycles go.
6. docs/board.md: the physical card, from clocks to PCIe.
7. docs/targets.md: how one design builds for several boards and chips (a target file per build: targets/*.toml).

What's next

• The last few percent of DRAM. Decode is bound by DRAM efficiency: it reads 82 to 85% of the DDR3-1066 peak. Work on the LiteDRAM path's efficiency is under way.

• Timing margin and area. The design closes 133.33 MHz, the clock at which the 128-byte port matches the two DDR3 channels, but only just (WNS +0.032 ns). A tournament of Vivado runs keeps working on its margin and area. Decode is bound by DRAM, so a faster clock mostly helps prefill.

• Faster prefill. The four-column systolic matrix unit is in the production image; prefill is still limited by the matrix unit's multiply rate.

• More targets. The design builds from target files (targets/*.toml, docs/targets.md): the YPCB-00338 in production, the BCU1525 (Virtex UltraScale+ VU9P, four DDR4 DIMMs) being brought up, and ASICs, starting with NanGate45 and OpenROAD for area, clock and power numbers.

Contributing

Issues and pull requests are welcome, and most of the work needs only Python and Verilator, not an FPGA. Changes to the ISA, the simulator or the RTL must keep python3 -m pytest -q passing, and performance claims should say how they were measured.

License

Apache License 2.0. See LICENSE.
