A framework where a deep Q-Learning Reinforcement Learning agent tries to choose the correct traffic light phase at an intersection to maximize traffic efficiency.

Deep Q-Learning Agent for Traffic Signal Control

Note: this project was refactored in November 2025 to improve clarity and modernize the tooling. The previous version is available at this commit.

A PyTorch-based Deep Q-Learning agent that learns to operate a single 4-way intersection in SUMO. The repo bundles a configurable training pipeline, a small CLI, and plotting utilities so you can focus on experimenting.

Agent: epsilon-greedy DQN with experience replay and a configurable fully connected network.
Environment: fixed SUMO intersection; state is 80 binary cells from discretized incoming lanes; 4 traffic-signal actions.
Outputs: trained model, copied settings, and plots for rewards, delay, and queue lengths.

Prerequisites

uv installed.
Python 3.13 (see pyproject.toml; you can manage Python versions directly via uv, which can download it for you).
SUMO installed and available via sumo / sumo-gui on your PATH. To do so, the environment variable SUMO_HOME must be set. For specific instructions, check out the official installation page.
GPU is optional; the default configuration trains on CPU.

Note: as of November 2025, macOS Tahoe and SUMO-GUI have an issue that can crash the SUMO GUI. In particular, the bug lies with the XQuartz library. See:

https://github.com/eclipse-sumo/sumo/issues/17272

https://github.com/XQuartz/XQuartz/issues/446

https://github.com/XQuartz/XQuartz/issues/438#issuecomment-3350746279

Getting started

Clone the repo. Then from the project root, install the dependencies:

uv sync

Activate the virtual environment:

source .venv/bin/activate   # on Windows: .venv\Scripts\activate

To check if the installation was successful, verify that the CLI is available:

tlcs --help

When you are finished, deactivate the virtual environment:

deactivate

Alternatively, if you prefer not to activate the environment explicitly, you can run commands via uv:

uv run tlcs --help

Train and test

Training and testing read YAML configuration from settings/. Both commands prompt before overwriting existing output folders.

Train (defaults to settings/training_settings.yaml, writes to model/):

tlcs train
# or choose a custom run folder
tlcs train --out-path model/run-01

Test a trained run (defaults to settings/testing_settings.yaml, writes to model//test/):
```
tlcs test --model-path model/run-01 --test-name foo
```

Discover all options with:

tlcs train --help
tlcs test --help

The settings

Configs live in settings/ and are validated at runtime.

training_settings.yaml

gui: run SUMO with (true) or without (false) the GUI.
total_episodes, max_steps, n_cars_generated: episode count, length, and traffic volume.
green_duration, yellow_duration: phase durations in seconds.
turn_chance: probability that a vehicle turns instead of going straight.
num_layers, width_layers: hidden layer count and width for the neural network.
batch_size, learning_rate, training_epochs: replay batch size, optimizer LR, and training passes per episode.
memory_size_min, memory_size_max: replay buffer warmup and capacity.
gamma: discount factor.
sumocfg_file: SUMO config path (defaults to intersection/sumo_config.sumocfg).

testing_settings.yaml

Mirrors the simulation settings (gui, max_steps, n_cars_generated, green_duration, yellow_duration, turn_chance, gamma, sumocfg_file) plus:
episode_seed: deterministic route generation for a reproducible test episode.

What gets saved

Each training run writes to the chosen output training folder:

trained_model.pt: serialized PyTorch model.
training_settings.yaml: copy of the settings used.
plot_reward.png, plot_delay.png, plot_queue.png and matching *_data.txt files.
Testing outputs are saved within the training folder in a dedicated testing subfolder with reward and queue plots plus data.

Project layout

src/tlcs/cli.py: CLI exposing tlcs train and tlcs test.
src/tlcs/main.py: orchestrates training/testing loops and stats aggregation.
src/tlcs/agent.py, model.py, memory.py: epsilon-greedy policy, MLP, and replay buffer.
src/tlcs/env.py: SUMO wrapper (state extraction, reward, action execution).
src/tlcs/generator.py: per-episode route generation.
src/tlcs/plots.py: saves plots plus raw data.
intersection/: SUMO assets (environment.net.xml, sumo_config.sumocfg, generated episode_routes.rou.xml).
settings/: YAML configs for training and testing.

Methodology

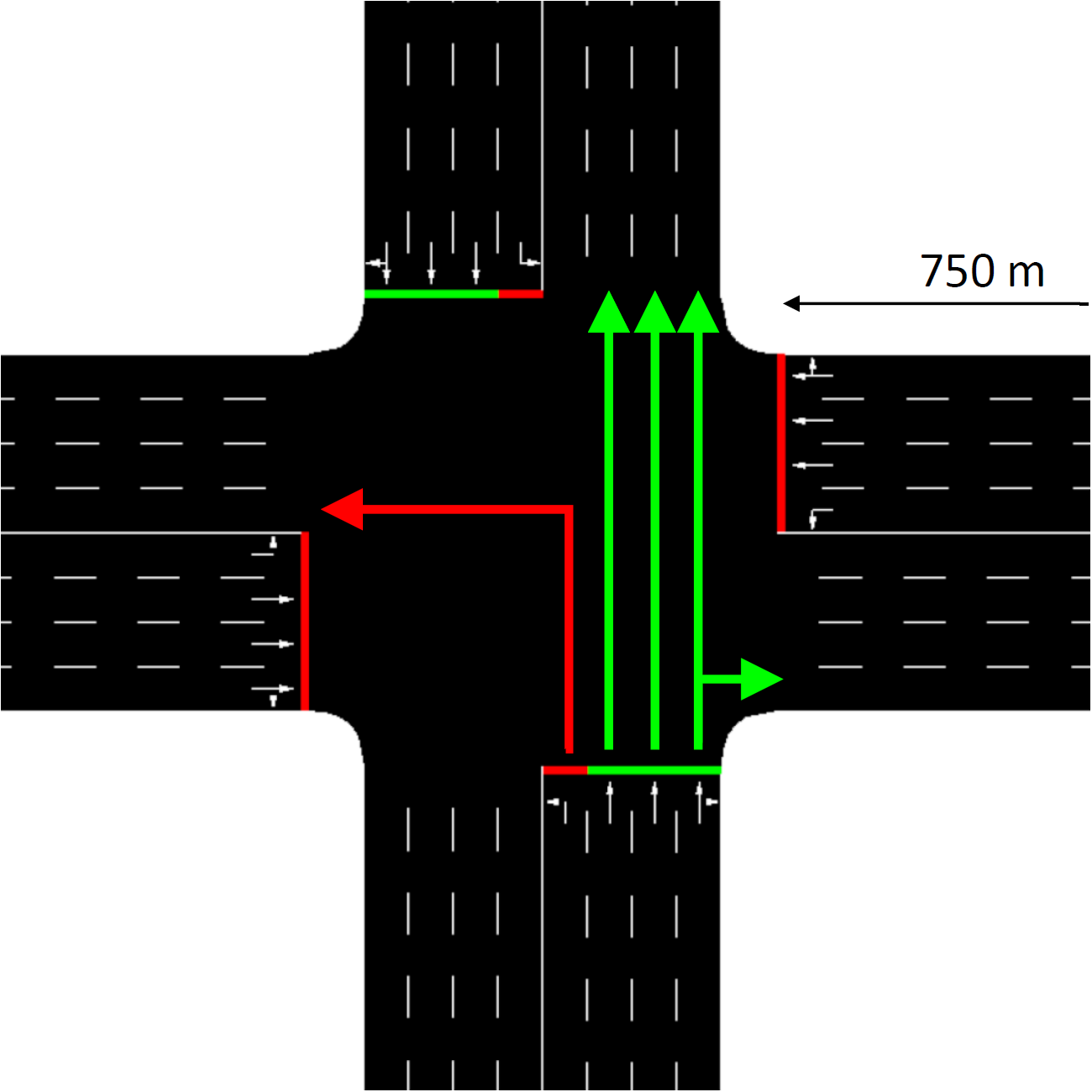

Intersection used in the experiments.

Scenario and state

Single 4-way junction; each arm has four incoming lanes over 750 m.
Incoming lanes are grouped by movement (left vs. straight/right), creating 8 lane groups.
Each group is discretized into 10 distance buckets (closer to the light -> higher bucket index) for 80 binary cells total.
State vector: length-80 array with 1 if at least one vehicle occupies a cell, else 0.

State encoding for one arm.

Actions and signals

Four fixed green phases (yellow inserted automatically on phase changes):

North-South straight/right
North-South left
East-West straight/right
East-West left

green_duration and yellow_duration control how long each phase lasts.

Reward

Reward is the change in cumulative waiting time on incoming edges:

reward = previous_total_wait - current_total_wait

Reducing total wait yields positive reward.

Traffic generation

One route file per episode generated on the fly.
Departure times follow a Weibull distribution scaled to [0, max_steps].
turn_chance controls whether a vehicle draws from turning routes versus straight routes.
Seeds (episode index for training; episode_seed for testing) make runs reproducible.

Policy and learning loop

Epsilon-greedy exploration: epsilon decays linearly from 1.0 to 0 over all training episodes.
Q-targets follow r + gamma * max_a' Q(next_state, a').
Experience replay with warmup (memory_size_min) and bounded buffer (memory_size_max).
Neural network architecture configurable via num_layers and width_layers; trained with MSE loss and Adam.

For each episode:

Generate routes.
Run SUMO until max_steps.
Collect transitions.
Push to replay.
run training_epochs replay batches.
Log/plot cumulative negative reward, cumulative delay, and average queue length.

Tips

Prefer headless mode (gui: false) for training; enable the GUI only when debugging a run or for the testing phase.
If an output directory already exists, the CLI asks before overwriting it.

License

MIT - see LICENSE.

Notes

Hi 👋 my name is Andrea, the maintainer of this project.

If you encounter a bug or need more information about this project, please open an issue.
