PICK-PyTorch

***** Updated on Feb 6th, 2021: Train Ticket dataset is now available for academic research. You can download from Google Drive or OneDrive. It contains 1,530 synthetic images and 320 real images for training, and 80 real images for testing. Please refer to our paper for more details about how to sample training/testing set from EATEN and generate the corresponding annotations.*****

***** Updated on Sep 17th, 2020: A training example on the large-scale document understanding dataset, DocBank, is now available. Please refer to examples/DocBank/README.md for more details. Thanks TengQi Ye for this contribution.*****

PyTorch reimplementation of "PICK: Processing Key Information Extraction from Documents using Improved Graph Learning-Convolutional Networks" (ICPR 2020). This project is different from our original implementation.

• Contents
  • Introduction
  • Requirements
  • Usage
    • Distributed training with config files
    • Using Multiple Node
    • Resuming from checkpoints
    • Debug mode on one GPU/CPU training with config files
    • Testing from checkpoints
  • Customization
    • Training custom datasets
    • Checkpoints
    • Tensorboard Visualization
  • Results on Train Ticket
  • TODOs
  • Citations
  • License
  • Acknowledgements

Introduction

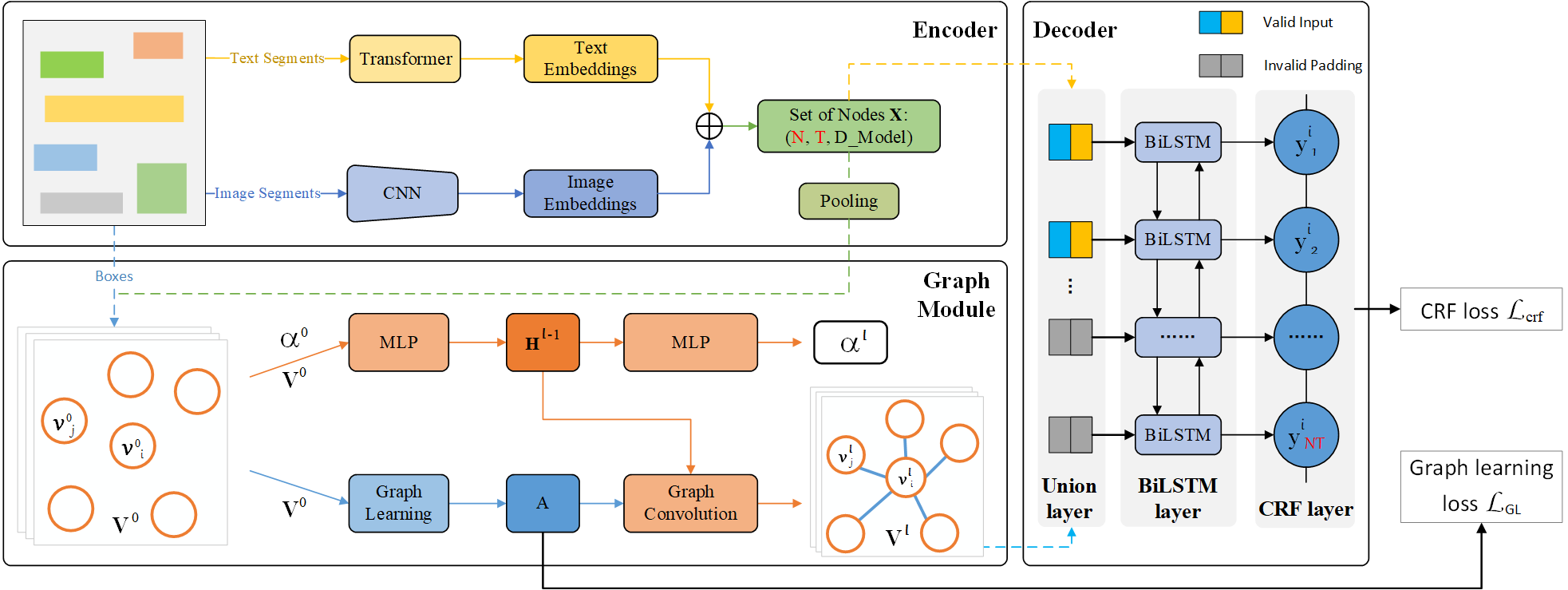

PICK is a framework that is effective and robust in handling complex documents layout for Key Information Extraction (KIE) by combining graph learning with graph convolution operation, yielding a richer semantic representation containing the textual and visual features and global layout without ambiguity. Overall architecture shown follows.

Requirements

• python = 3.6
• torchvision = 0.6.1
• tabulate = 0.8.7
• overrides = 3.0.0
• opencv_python = 4.3.0.36
• numpy = 1.16.4
• pandas = 1.0.5
• allennlp = 1.0.0
• torchtext = 0.6.0
• tqdm = 4.47.0
• torch = 1.5.1

pip install -r requirements.txt

Usage

Distributed training with config files

Modify the configurations in config.json and dist_train.sh files, then run:

bash dist_train.sh

The application will be launched via launch.py on a 4 GPU node with one process per GPU (recommend).

This is equivalent to

python -m torch.distributed.launch --nnodes=1 --node_rank=0 --nproc_per_node=4 \
--master_addr=127.0.0.1 --master_port=5555 \
train.py -c config.json -d 1,2,3,4 --local_world_size 4

and is equivalent to specify indices of available GPUs by CUDA_VISIBLE_DEVICES instead of -d args

CUDA_VISIBLE_DEVICES=1,2,3,4 python -m torch.distributed.launch --nnodes=1 --node_rank=0 --nproc_per_node=4 \
--master_addr=127.0.0.1 --master_port=5555 \
train.py -c config.json --local_world_size 4

Similarly, it can be launched with a single process that spans all 4 GPUs (if node has 4 available GPUs) using (don't recommend):

CUDA_VISIBLE_DEVICES=1,2,3,4 python -m torch.distributed.launch --nnodes=1 --node_rank=0 --nproc_per_node=1 \
--master_addr=127.0.0.1 --master_port=5555 \
train.py -c config.json --local_world_size 1

Using Multiple Node

You can enable multi-node multi-GPU training by setting nnodes and node_rank args of the commandline line on every node. e.g., 2 nodes 4 gpus run as follows

Node 1, ip: 192.168.0.10, then run on node 1 as follows

CUDA_VISIBLE_DEVICES=1,2,3,4 python -m torch.distributed.launch --nnodes=2 --node_rank=0 --nproc_per_node=4 \
--master_addr=192.168.0.10 --master_port=5555 \
train.py -c config.json --local_world_size 4

Node 2, ip: 192.168.0.15, then run on node 2 as follows

CUDA_VISIBLE_DEVICES=2,4,6,7 python -m torch.distributed.launch --nnodes=2 --node_rank=1 --nproc_per_node=4 \
--master_addr=192.168.0.10 --master_port=5555 \
train.py -c config.json --local_world_size 4

Resuming from checkpoints

You can resume from a previously saved checkpoint by:

python -m torch.distributed.launch --nnodes=1 --node_rank=0 --nproc_per_node=4 \
--master_addr=127.0.0.1 --master_port=5555 \
train.py -d 1,2,3,4 --local_world_size 4 --resume path/to/checkpoint

Debug mode on one GPU/CPU training with config files

This option of training mode can debug code without distributed way. -dist must set to false to turn off distributed mode. -d specify which one gpu will be used.

python train.py -c config.json -d 1 -dist false

Testing from checkpoints

You can test from a previously saved checkpoint by:

python test.py --checkpoint path/to/checkpoint --boxes_transcripts path/to/boxes_transcripts \
               --images_path path/to/images_path --output_folder path/to/output_folder \
               --gpu 0 --batch_size 2

Customization

Training custom datasets

You can train your own datasets following the steps outlined below.

1. Prepare the correct format of files as provided in data folder.
   • Please see data/README.md an instruction how to prepare the data in required format for PICK.
2. Modify train_dataset and validation_dataset args in config.json file, including files_name, images_folder, boxes_and_transcripts_folder, entities_folder, iob_tagging_type and resized_image_size.
3. Modify Entities_list in utils/entities_list.py file according to the entity type of your dataset.
4. Modify keys.txt in utils/keys.txt file if needed according to the vocabulary of your dataset.
5. Modify MAX_BOXES_NUM and MAX_TRANSCRIPT_LEN in data_tuils/documents.py file if needed.

Note: The self-build datasets our paper used cannot be shared for patient privacy and proprietary issues.

Checkpoints

You can specify the name of the training session in config.json files:

"name": "PICK_Default",
"run_id": "test"

The checkpoints will be saved in save_dir/name/run_id_timestamp/checkpoint_epoch_n, with timestamp in mmdd_HHMMSS format.

A copy of config.json file will be saved in the same folder.

Note: checkpoints contain:

{
  'arch': arch,
  'epoch': epoch,
  'state_dict': self.model.state_dict(),
  'optimizer': self.optimizer.state_dict(),
  'monitor_best': self.monitor_best,
  'config': self.config
}

Tensorboard Visualization

This project supports Tensorboard visualization by using either torch.utils.tensorboard or TensorboardX.

1. Install

   If you are using pytorch 1.1 or higher, install tensorboard by 'pip install tensorboard>=1.14.0'.

   Otherwise, you should install tensorboardx. Follow installation guide in TensorboardX.

2. Run training

   Make sure that tensorboard option in the config file is turned on.

    "tensorboard" : true


3. Open Tensorboard server

   Type tensorboard --logdir saved/log/ at the project root, then server will open at http://localhost:6006

By default, values of loss will be logged. If you need more visualizations, use add_scalar('tag', data), add_image('tag', image), etc in the trainer._train_epoch method. add_something() methods in this project are basically wrappers for those of tensorboardX.SummaryWriter and torch.utils.tensorboard.SummaryWriter modules.

Note: You don't have to specify current steps, since WriterTensorboard class defined at logger/visualization.py will track current steps.

Results on Train Ticket

TODOs

• [ ] Dataset cache mechanism to speed up training loop
• [x] Multi-node multi-gpu setup (DistributedDataParallel)

Citations

If you find this code useful please cite our paper:

@inproceedings{Yu2020PICKPK,
  title={{PICK}: Processing Key Information Extraction from Documents using
  Improved Graph Learning-Convolutional Networks},
  author={Wenwen Yu and Ning Lu and Xianbiao Qi and Ping Gong and Rong Xiao},
  booktitle={2020 25th International Conference on Pattern Recognition (ICPR)},
  year={2020}
}

License

This project is licensed under the MIT License. See LICENSE for more details.

Acknowledgements

This project structure takes example by PyTorch Template Project.
