OmniDocBench

[📜 arXiv] | [Dataset (🤗Hugging Face)] | [Dataset (OpenDataLab)] | [Official Site (OpenDataLab)]

OmniDocBench is a benchmark for evaluating diverse document parsing in real-world scenarios, featuring the following characteristics:

Diverse Document Types: This benchmark includes 1651 PDF pages, covering 10 document types, 5 layout types, and 5 language types. It encompasses a wide range of content, including academic papers, financial reports, newspapers, textbooks, and handwritten notes.
Rich Annotation Information: It contains localization information for 28 block-level (such as text paragraphs, headings, tables, etc.) and 4 span-level (such as text lines, inline formulas, subscripts, etc.) document elements. Each element's region includes recognition results (text annotations, LaTeX annotations for formulas, and both LaTeX and HTML annotations for tables). OmniDocBench also provides annotations for the reading order of document components. Additionally, it includes various attribute tags at the page and block levels, with annotations for 5 page attribute tags, 3 text attribute tags, and 6 table attribute tags.
High Annotation Quality: The data quality is high, achieved through manual screening, intelligent annotation, manual annotation, and comprehensive expert and large model quality checks.
Supporting Evaluation Code: It includes end-to-end and single-module evaluation code to ensure fairness and accuracy in assessments.

OmniDocBench is designed for Document Parsing, featuring rich annotations for evaluation across several dimensions:

End-to-end evaluation
Layout detection
Table recognition
Formula recognition
Text OCR

Currently supported metrics include:

Normalized Edit Distance
BLEU
METEOR
TEDS
COCODet (mAP, mAR, etc.)

Table of Contents
Updates
Benchmark Introduction
Evaluation
Tools
The evaluation model information
- End2End
- Text Recognition
- Layout
- Formula
- Table
TODO
Known Issues
Acknowledgement
Copyright Statement
Citation

Updates

[2026/09/11] Added TeleOCR, OvisOCR2, and Unlimited-OCR leaderboard results.

[2026/07/27] Added a community-maintained EvalScope integration for running OmniDocBench with OpenAI-compatible model endpoints and standardized predictions, metrics, and reports. See the EvalScope guide: https://evalscope.readthedocs.io/en/latest/benchmarks/omni_doc_bench.html

[2026/04/30] Updated from v1.6 to v1.7, added the Qianfan-OCR leaderboard, and supported skills-based evaluation.

[2026/04/10] Major update: Updated from v1.5 to v1.6

Evaluation code: (1) We propose Multi-Granularity Adaptive Matching (MGAM), which eliminates matching bias through adaptive granularity adjustment on the prediction side. The core principle is to keep the ground truth unchanged and search for the optimal segmentation granularity only on the prediction side. (2) To optimize the deployment of CDM, dependency packages such as Node.js and KaTeX have been rewritten in Python and replaced, resulting in an approximately 3x speed improvement.
Benchmark dataset: (1) Added 296 new pages, samples are chosen to cover the more challenging scenario categories in document parsing, including complex nested tables, dense mathematical formula layouts, and unconventional layout structures; (2) Fixed typos in some text and table annotations；
Note: The main branch of evaluation code (this repo) and dataset in HuggingFace and OpenDataLab are now updated to Version v1.6, if you still want to evaluate your model in v1.0 or v1.5, please checkout to specific branch.

[2026/03/31] Update the model evaluation for PaddleOCR-VL-1.5, Youtu-Parsing, FireRed-OCR, Logics-Parsing-v2, Ovis2.6-30B-A3B, MinerU2.5, HunyuanOCR, FD-RL, DeepSeek-OCR-2, MonkeyOCR-pro-3B, OCRVerse, dots.ocr, Dolphin-v2, MonkeyOCR-3B, POINTS-Reader, Gemini-3 Flash, Gemini-3 Pro, Kimi 2.5, GPT5.2, GPT-4o, InternVL3.5, GLM-OCR, OpenDoc and Mathpix. Added inference scripts for the models listed above.

[2025/11/04] Add a Docker runtime environment, including the evaluation environment and the CDM environment.

[2025/10/28] Update PaddleOCR-VL, Qwen3-VL-235B-A22B-Instruct, DeepSeek-OCR, Dolphin-1.5 model evaluation.

[2025/09/25] Major update: Updated from v1.0 to v1.5

Evaluation code: (1) Updated the hybrid matching algorithm, allowing formulas and text to be matched with each other, which alleviates score errors caused by models outputting formulas as unicode; (2) Integrated CDM calculation directly into the metric section, so users with a CDM environment can compute the metric directly by calling CDM in config file. The previous interface for outputting formula matching pairs as a JSON file is still retained, now named CDM_plain in config file.
Benchmark dataset: (1) Increased the image resolution for newspaper and note types from 72 DPI to 200 DPI; (2) Added 374 new pages, balanced the number of Chinese and English pages, and increased the proportion of pages containing formulas; (3) Formulas update language attributes; (4) Fixed typos in some text and table annotations.
Leaderboard: (1) Removed the Chinese/English grouping, now calculating the average score across all pages; (2) The Overall metric is now calculated as ((1 - text Edit distance) * 100 + table TEDS + formula CDM) / 3;
Note: The main branch of evaluation code (this repo) and dataset in HuggingFace and OpenDataLab are now updated to Version v1.5, if you still want to evaluate your model in v1.0, please checkout to branch v1_0.

[2025/09/09] Updated Dolphin model evaluation with the latest inference script and model weights; Add Dolphin infer script;

[2025/08/20] Updated PP-StructureV3, MonkeyOCR-pro-1.2B model evaluation; Added Mistral OCR, Pix2text, phocr, Nanonets-OCR-s infer scripts;

[2025/07/31] Added MinerU2-VLM, Marker-1.7.1, PP-StructureV3, MonkeyOCR-pro-1.2B, Dolphin, Nanonets-OCR-s, OCRFlux-3B, Qwen2.5-VL-7B and InternVL3-78B model evaluation; Updated versions of MinerU.

[2025/03/27] Added Pix2Text, Unstructured, OpenParse, Gemini-2.0 Flash, Gemini-2.5 Pro, Mistral OCR, olmOCR, Qwen2.5-VL-72B model evaluation;

[2025/03/10] OmniDocBench has been accepted by CVPR 2025!

[2025/01/16] Updated versions of Marker, Tesseract OCR, and StructEqTable; Added Docling, OpenOCR, and EasyOCR evaluations; Changed the Edit Distance calculation for the Table section to use normalized GTs and Preds; Added evaluation model version information.

Benchmark Introduction

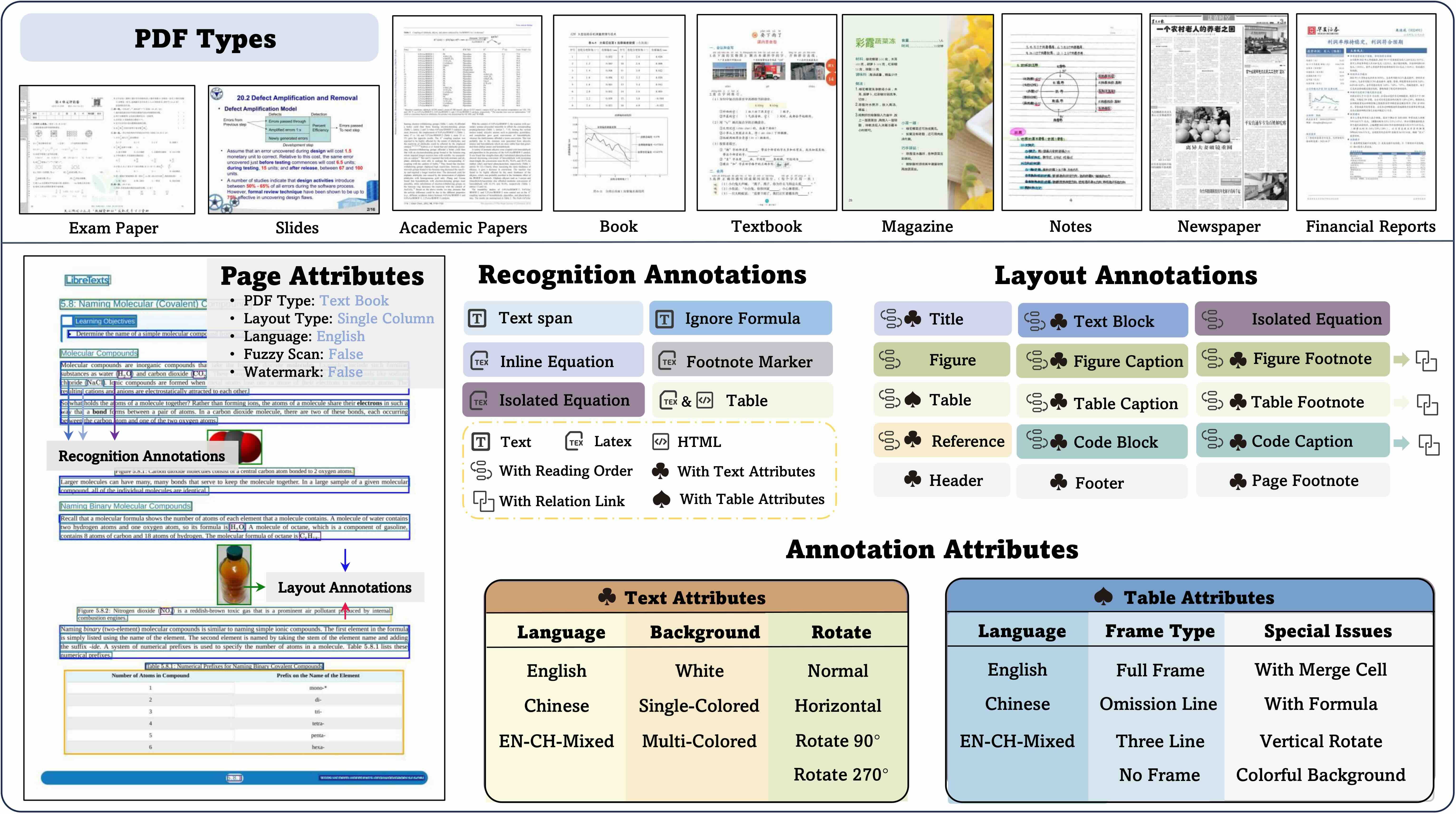

This benchmark includes 1651 PDF pages, covering 10 document types, 5 layout types, and 5 language types. OmniDocBench features rich annotations, containing 28 block-level annotations (text paragraphs, headings, tables, etc.) and 4 span-level annotations (text lines, inline formulas, subscripts, etc.). All text-related annotation boxes include text recognition annotations, formulas contain LaTeX annotations, and tables include both LaTeX and HTML annotations. OmniDocBench also provides reading order annotations for document components. Additionally, it includes various attribute tags at the page and block levels, with annotations for 5 page attribute tags, 3 text attribute tags, and 6 table attribute tags.

【Dataset Format】

The dataset format is JSON, with the following structure and field explanations:

[{
    "layout_dets": [    // List of page elements
        {
            "category_type": "text_block",  // Category name
            "poly": [
                136.0, // Position information, coordinates for top-left, top-right, bottom-right, bottom-left corners (x,y)
                781.0,
                340.0,
                781.0,
                340.0,
                806.0,
                136.0,
                806.0
            ],
            "ignore": false,        // Whether to ignore during evaluation
            "order": 0,             // Reading order
            "anno_id": 0,           // Special annotation ID, unique for each layout box
            "text": "xxx",          // Optional field, Text OCR results are written here
            "latex": "$xxx$",       // Optional field, LaTeX for formulas and tables is written here
            "html": "xxx",          // Optional field, HTML for tables is written here
            "attribute" {"xxx": "xxx"},         // Classification attributes for layout, detailed below
            "line_with_spans:": [   // Span level annotation boxes
                {
                    "category_type": "text_span",
                    "poly": [...],
                    "ignore": false,
                    "text": "xxx",
                    "latex": "$xxx$",
                 },
                 ...
            ],
            "merge_list": [    // Only present in annotation boxes with merge relationships, merge logic depends on whether single line break separated paragraphs exist, like list types
                {
                    "category_type": "text_block",
                    "poly": [...],
                    ...   // Same fields as block level annotations
                    "line_with_spans": [...]
                    ...
                 },
                 ...
            ]
        ...
    ],
    "page_info": {
        "page_no": 0,            // Page number
        "height": 1684,          // Page height
        "width": 1200,           // Page width
        "image_path": "xx/xx/",  // Annotated page filename
        "page_attribute": {"xxx": "xxx"}     // Page attribute labels
    },
    "extra": {
        "relation": [ // Related annotations
            {
                "source_anno_id": 1,
                "target_anno_id": 2,
                "relation": "parent_son"  // Relationship label between figure/table and their corresponding caption/footnote categories
            },
            {
                "source_anno_id": 5,
                "target_anno_id": 6,
                "relation_type": "truncated"  // Paragraph truncation relationship label due to layout reasons, will be concatenated and evaluated as one paragraph during evaluation
            },
        ]
    }
},
...
]

【Evaluation Categories】

Evaluation categories include:

# Block level annotation boxes
'title'               # Title
'text_block'          # Paragraph level plain text
'figure',             # Figure type
'figure_caption',     # Figure description/title
'figure_footnote',    # Figure notes
'table',              # Table body
'table_caption',      # Table description/title
'table_footnote',     # Table notes
'equation_isolated',  # Display formula
'equation_caption',   # Formula number
'header'              # Header
'footer'              # Footer
'page_number'         # Page number
'page_footnote'       # Page notes
'abandon',            # Other discarded content (e.g. irrelevant information in middle of page)
'code_txt',           # Code block
'code_txt_caption',   # Code block description
'reference',          # References

# Span level annotation boxes
'text_span'           # Span level plain text
'equation_ignore',    # Formula to be ignored
'equation_inline',    # Inline formula
'footnote_mark',      # Document superscripts/subscripts

【Attribute Labels】

Page classification attributes include:

'data_source': #PDF type classification
    academic_literature  # Academic literature
    PPT2PDF # PPT to PDF
    book # Black and white books and textbooks
    colorful_textbook # Colorful textbooks with images
    exam_paper # Exam papers
    note # Handwritten notes
    magazine # Magazines
    research_report # Research reports and financial reports
    newspaper # Newspapers

'language': #Language type
    en # English
    simplified_chinese # Simplified Chinese
    en_ch_mixed # English-Chinese mixed

'layout': #Page layout type
    single_column # Single column
    double_column # Double column
    three_column # Three column
    1andmore_column # One mixed with multiple columns, common in literature
    other_layout # Other layouts

'watermark': # Whether contains watermark
    true
    false

'fuzzy_scan': # Whether blurry scanned
    true
    false

'colorful_backgroud': # Whether contains colorful background, content to be recognized has more than two background colors
    true
    false

Block level attribute - Table related attributes:

'table_layout': # Table orientation
    vertical # Vertical table
    horizontal # Horizontal table

'with_span': # Merged cells
    False
    True

'line': # Table borders
    full_line # Full borders
    less_line # Partial borders
    fewer_line # Three-line borders
    wireless_line # No borders

'language': # Table language
    table_en # English table
    table_simplified_chinese # Simplified Chinese table
    table_en_ch_mixed # English-Chinese mixed table

'include_equation': # Whether table contains formulas
    False
    True

'include_backgroud': # Whether table contains background color
    False
    True

'table_vertical' # Whether table is rotated 90 or 270 degrees
    False
    True

Block level attribute - Text paragraph related attributes:

'text_language': # Text language
    text_en  # English
    text_simplified_chinese # Simplified Chinese
    text_en_ch_mixed  # English-Chinese mixed

'text_background':  # Text background color
    white # Default value, white background
    single_colored # Single background color other than white
    multi_colored  # Multiple background colors

'text_rotate': # Text rotation classification within paragraphs
    normal # Default value, horizontal text, no rotation
    rotate90  # Rotation angle, 90 degrees clockwise
    rotate180 # 180 degrees clockwise
    rotate270 # 270 degrees clockwise
    horizontal # Text is normal but layout is vertical

Block level attribute - Formula related attributes:

'formula_type': # Formula type
    print  # Print
    handwriting # Handwriting

'equation_language' # Formula language
    equation_en  # English
    equation_ch # Chinese

Evaluation

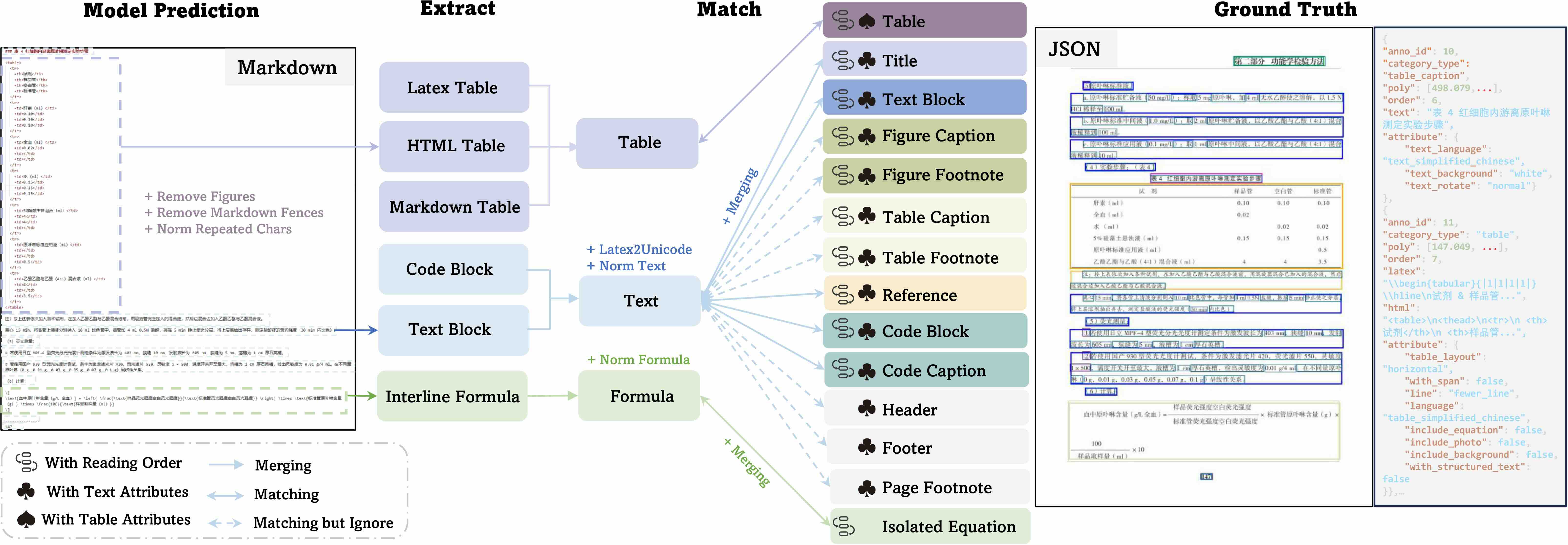

OmniDocBench has developed an evaluation methodology based on document component segmentation and matching. It provides corresponding metric calculations for four major modules: text, tables, formulas, and reading order. In addition to overall accuracy results, the evaluation also provides fine-grained evaluation results by page and attributes, precisely identifying pain points in model document parsing.

Environment Setup and Running

The evaluation pipeline requires Python 3.10 and several system-level dependencies (TeX Live, ImageMagick, Ghostscript) for CDM formula metrics. Two deployment methods are provided, and the Docker approach is recommended:

Option A: Docker (recommended)

A pre-built Docker image bundles the exact verified runtime (Python 3.10 conda env + TeX Live 2025 + ImageMagick 7.1.1-47 + Ghostscript 9.55.0).

Pull the image

docker pull ghcr.io/zeng-weijun/omnidocbench-eval:repro-ubuntu2204

Run with your own data

docker run --rm \
  --entrypoint bash \
  -v /path/to/your_gt.json:/workspace/gt/your_gt.json:ro \
  -v /path/to/your_predictions:/workspace/data_md/predictions:ro \
  -v /path/to/output:/workspace/result \
  ghcr.io/zeng-weijun/omnidocbench-eval:repro-ubuntu2204 \
  -c 'cat > configs/custom.yaml << "EOF"
end2end_eval:
  metrics:
    text_block:
      metric: [Edit_dist]
    display_formula:
      metric: [Edit_dist, CDM]
    table:
      metric: [TEDS, Edit_dist]
    reading_order:
      metric: [Edit_dist]
  dataset:
    dataset_name: end2end_dataset
    ground_truth:
      data_path: ./gt/your_gt.json
    prediction:
      data_path: ./data_md/predictions
    match_method: quick_match
    match_workers: 4
    quick_match_truncated_timeout_sec: 300
    timeout_fallback_max_chunk_span: 10
    timeout_fallback_order_penalty: 0.10
EOF
python pdf_validation.py --config configs/custom.yaml'

Verify runtime inside the image

docker run --rm --entrypoint bash \
  ghcr.io/zeng-weijun/omnidocbench-eval:repro-ubuntu2204 \
  -lc 'bash script/verify_repro_runtime.sh'

Build from source (optional)

bash script/build_repro_docker_image.sh

Option B: Conda

Requires Ubuntu 22.04 / 20.04, at least 8 GB disk space and 8 GB RAM, root access.

Step 1 — Create environment and install Python dependencies

conda create -n omnidocbench python=3.10 -y
conda activate omnidocbench
git clone  && cd Omnidocbench
pip install -e .
python -c "from src.core.pipeline import run_config_file; print('OK')"

Step 2 — Install Ghostscript

CDM metrics need Ghostscript for PDF-to-PNG conversion via ImageMagick.

sudo apt-get update && sudo apt-get install -y ghostscript
gs --version   # expected: 9.55.0 on Ubuntu 22.04

Step 3 — Install TeX Live 2025

CDM metrics need pdflatex with CJK Chinese font support.

cd ~ && wget http://mirror.ctan.org/systems/texlive/tlnet/install-tl-unx.tar.gz
tar -xzf install-tl-unx.tar.gz && cd install-tl-*/
sudo ./install-tl   # interactive, full install ~7 GB

echo 'export PATH=/usr/local/texlive/2025/bin/x86_64-linux:$PATH' >> ~/.bashrc
source ~/.bashrc
pdflatex --version | head -2   # expected: pdfTeX ... (TeX Live 2025)

# Verify CJK support
kpsewhich CJK.sty && kpsewhich c70gkai.fd
# If missing: sudo tlmgr install cjk cjkutils arphic gkai

Step 4 — Install ImageMagick 7.x (compile from source)

Ubuntu 22.04 ships ImageMagick 6.x; CDM requires 7.x.

sudo apt-get install -y build-essential pkg-config \
  libjpeg-dev libpng-dev libtiff-dev libwebp-dev \
  libfreetype6-dev libfontconfig1-dev

cd /tmp
wget https://github.com/ImageMagick/ImageMagick/archive/refs/tags/7.1.1-47.tar.gz
tar xzf 7.1.1-47.tar.gz && cd ImageMagick-7.1.1-47
./configure --with-modules --enable-shared --with-gslib \
  --with-gs-font-dir=/usr/share/fonts/type1/gsfonts --prefix=/usr/local
make -j$(nproc) && sudo make install && sudo ldconfig
magick --version | head -2   # expected: ImageMagick 7.1.1-47

# Allow PDF read/write
POLICY_FILE=$(find /usr/local/etc/ImageMagick-7 -name policy.xml 2>/dev/null | head -1)
[ -n "$POLICY_FILE" ] && sudo sed -i \
  's|||' \
  "$POLICY_FILE"

Step 5 — Verify and run

python -m pytest tools/test_environment_and_smoke.py::TestEnvironmentVersions -v -s
python pdf_validation.py --config configs/end2end.yaml

Verified versions

Component	Version
Python	3.10.x
TeX Live	2025
pdflatex	3.141592653-2.6-1.40.28
ImageMagick	7.1.1-47
Ghostscript	9.55.0

Worker concurrency

The pipeline has three parallel stages. Set each to 1/3–1/2 of available CPU cores to avoid deadlocks or OOM:

Stage	Config key	Notes
Page matching	`match_workers`	text alignment
CDM rendering	`cdm_workers`	~1 GB RAM per worker
TEDS tables	`teds_workers`	table structure similarity

Running the evaluation

All evaluation inputs are configured through configs/end2end.yaml. Edit ground_truth.data_path and prediction.data_path to point to your data, then run:

python pdf_validation.py --config

Option C: skills

I need to evaluate an xx model with OmniDocBench using Docker. The GT path is /path/OmniDocBench.json, the prediction result path is /path/predfolder, and CDM is required. Please help me run the evaluation.

End-to-End Evaluation

End-to-end evaluation assesses the model's accuracy in parsing PDF page content. The evaluation uses the model's Markdown output of the entire PDF page parsing results as the prediction. The Overall metric is calculated as:

$$\text{Overall} = \frac{(1-\textit{Text Edit Distance}) \times 100 + \textit{Table TEDS} +\textit{Formula CDM}}{3}$$

Comprehensive evaluation of document parsing on OmniDocBench (v1.6_full)

Model Type

Methods

Size

Overall↑

TextEdit↓

FormulaCDM↑

TableTEDS↑

TableTEDS-S↑

Read OrderEdit↓

TeleOCR

Specialized VLMs

1.2B

96.91

0.0267

96.5895

96.8183

98.1806

0.1184

OvisOCR2

Specialized VLMs

0.8B

96.47

0.0265

97.4854

94.5842

96.9768

0.1120

PaddleOCR-VL-1.6

Specialized VLMs

0.9B

96.34

0.0326

97.5304

94.7619

97.1002

0.1278

MinerU2.5-Pro

Specialized VLMs

1.2B

95.75

0.036

97.45

93.42

95.92

0.120

GLM-OCR

Specialized VLMs

0.9B

95.22

0.044

97.18

92.83

95.39

0.133

PaddleOCR-VL-1.5

Specialized VLMs

0.9B

94.93

0.038

96.89

91.67

94.37

0.130

PaddleOCR-VL

Specialized VLMs

0.9B

94.18

0.040

95.91

90.65

93.74

0.135

Unlimited-OCR

Specialized VLMs

94.00

0.0394

95.7234

90.21

93.3565

0.1281

Youtu-Parsing

Specialized VLMs

2.5B

93.74

0.044

93.63

92.02

95.00

0.116

Qianfan-OCR

Specialized VLMs

93.90

0.04

95.08

90.53

93.31

0.13

Ovis2.6-30B-A3B

General VLMs

30B

93.70

0.035

95.17

89.44

92.40

0.135

Logics-Parsing-v2

Specialized VLMs

93.33

0.041

95.65

88.42

91.98

0.137

ABot-OCR

Specialized VLMs

93.30

0.037

94.86

88.69

91.87

0.137

FireRed-OCR

Specialized VLMs

93.26

0.037

95.44

88.04

91.06

0.131

MinerU-2.5

Specialized VLMs

1.2B

93.04

0.045

95.77

87.88

91.47

0.130

Gemini 3 Pro

General VLMs

92.91

0.064

95.99

89.15

92.96

0.165

Gemini 3 Flash

General VLMs

92.62

0.066

95.16

89.29

93.51

0.172

dots.ocr

Specialized VLMs

90.77

0.048

89.95

87.18

90.58

0.138

OpenDoc-0.1B

Specialized VLMs

0.1B

90.67

0.049

93.02

83.88

87.45

0.140

DeepSeek-OCR 2

Specialized VLMs

90.25

0.050

91.84

83.89

87.75

0.144

HunyuanOCR

Specialized VLMs

89.95

0.088

87.68

91.01

93.23

0.171

Qwen3-VL-235B

General VLMs

235B

89.78

0.063

92.55

83.07

86.75

0.166

Dolphin-v2

Specialized VLMs

89.50

0.069

91.01

84.40

87.44

0.150

OCRVerse

Specialized VLMs

88.60

0.063

89.61

82.44

86.27

0.163

MonkeyOCR-pro-3B

Specialized VLMs

88.57

0.074

88.74

84.35

88.62

0.189

GPT-5.2

General VLMs

86.59

0.114

88.21

82.95

87.93

0.193

Dolphin-1.5

Specialized VLMs

0.3B

86.52

0.094

87.49

81.43

84.82

0.167

MinerU-Pipeline

Pipeline Tools

86.47

0.055

83.07

81.88

88.68

0.153

olmOCR

Specialized VLMs

85.74

0.139

88.10

83.00

87.17

0.216

Mistral OCR

Specialized VLMs

85.66

0.097

89.91

76.78

80.93

0.171

Kimi K2.5

General VLMs

84.53

0.107

83.50

80.76

84.00

0.211

InternVL3.5-241B

General VLMs

241B

83.76

0.130

89.95

74.35

79.78

0.215

Nanonets-OCR-s

Specialized VLMs

83.61

0.108

81.46

80.18

84.51

0.213

POINTS-Reader

Specialized VLMs

83.37

0.096

85.72

73.98

77.40

0.198

Marker

Pipeline Tools

78.44

0.157

85.24

65.77

73.24

0.243

More detailed attribute-level evaluation results are shown in the paper. Or you can use the tools/generate_result_tables.ipynb to generate the result leaderboard.

End-to-End Evaluation Method - end2end

End-to-end evaluation consists of two approaches:

end2end: This method uses OmniDocBench's JSON files as Ground Truth. For config file reference, see: end2end
md2md: This method uses OmniDocBench's markdown format as Ground Truth. Details will be discussed in the next section markdown-to-markdown evaluation.

We recommend using the end2end evaluation approach since it preserves the category and attribute information of samples, enabling special category ignore operations and attribute-level result output.

The end2end evaluation can assess four dimensions. We provide an example of end2end evaluation results in result, including:

Text paragraphs
Display formulas
Tables
Reading order

【Field explanations for end2end.yaml】

The configuration of end2end.yaml is as follows:

end2end_eval:          # Specify task name, common for end-to-end evaluation
  metrics:             # Configure metrics to use
    text_block:        # Configuration for text paragraphs
      metric:
        - Edit_dist    # Normalized Edit Distance
        - BLEU
        - METEOR
    display_formula:   # Configuration for display formulas
      metric:
        - Edit_dist
        - CDM          # Only supports exporting format required for CDM evaluation, stored in results
    table:             # Configuration for tables
      metric:
        - TEDS
        - Edit_dist
    reading_order:     # Configuration for reading order
      metric:
        - Edit_dist
  dataset:                                       # Dataset configuration
    dataset_name: end2end_dataset                # Dataset name, no need to modify
    ground_truth:
      data_path: ./demo_data/omnidocbench_demo/OmniDocBench_demo.json  # Path to OmniDocBench
    prediction:
      data_path: ./demo_data/end2end            # Folder path for model's PDF page parsing markdown results
    match_method: quick_match                    # Matching method, options: no_split/no_split/quick_match
    filter:                                      # Page-level filtering
      language: english                          # Page attributes and corresponding tags to evaluate

The data_path under prediction is the folder path containing the model's PDF page parsing results. The folder contains markdown files for each page, with filenames matching the image names but replacing the .jpg extension with .md.

CDM now supports direct evaluation, which requires you to set up the CDM environment according to the README and then call CDM directly in the config file. In addition, we still support exporting the JSON format required for CDM evaluation as before: simply add the CDM_plain field in the metric configuration, and the output will be organized into the CDM input format and stored in the result directory.

For end-to-end evaluation, the config allows selecting different matching methods. There are three matching approaches:

no_split: Does not split or match text blocks, but rather combines them into a single markdown for calculation. This method will not output attribute-level results or reading order results.
simple_match: Performs only paragraph segmentation using double line breaks, then directly matches one-to-one with GT without any truncation or merging.
quick_match: Builds on paragraph segmentation by adding truncation and merging operations to reduce the impact of paragraph segmentation differences on final results, using Adjacency Search Match for truncation and merging. In version 1.5, the evaluation method has been fully upgraded to a Hybrid Matching approach, allowing formulas and text to be matched with each other, which reduces the score impact caused by models outputting formulas in unicode format.

We recommend using quick_match for better matching results. However, if the model's paragraph segmentation is accurate, simple_match can be used for faster evaluation. The matching method is configured through the match_method field under dataset in the config.

The filter field allows filtering the dataset. For example, setting filter to language: english under dataset will evaluate only pages in English. See the Dataset Introduction section for more page attributes. Comment out the filter fields to evaluate the full dataset.

End-to-end Evaluation Method - md2md

The markdown-to-markdown evaluation uses the model's markdown output of the entire PDF page parsing as the Prediction, and OmniDocBench's markdown format as the Ground Truth. Please refer to the config file: md2md. We recommend using the end2end approach from the previous section to evaluate with OmniDocBench, as it preserves rich attribute annotations and ignore logic. However, we still provide the md2md evaluation method to align with existing evaluation approaches.

The md2md evaluation can assess four dimensions:

Text paragraphs
Display formulas
Tables
Reading order

【Field explanations for md2md.yaml】

The configuration of md2md.yaml is as follows:

end2end_eval:          # Specify task name, common for end-to-end evaluation
  metrics:             # Configure metrics to use
    text_block:        # Configuration for text paragraphs
      metric:
        - Edit_dist    # Normalized Edit Distance
        - BLEU
        - METEOR
    display_formula:   # Configuration for display formulas
      metric:
        - Edit_dist
        - CDM          # Only supports exporting format required for CDM evaluation, stored in results
    table:             # Configuration for tables
      metric:
        - TEDS
        - Edit_dist
    reading_order:     # Configuration for reading order
      metric:
        - Edit_dist
  dataset:                                               # Dataset configuration
    dataset_name: md2md_dataset                          # Dataset name, no need to modify
    ground_truth:                                        # Configuration for ground truth dataset
      data_path: ./demo_data/omnidocbench_demo/mds       # Path to OmniDocBench markdown folder
      page_info: ./demo_data/omnidocbench_demo/OmniDocBench_demo.json          # Path to OmniDocBench JSON file, mainly used to get page-level attributes
    prediction:                                          # Configuration for model predictions
      data_path: ./demo_data/end2end                     # Folder path for model's PDF page parsing markdown results
    match_method: quick_match                            # Matching method, options: no_split/no_split/quick_match
    filter:                                              # Page-level filtering
      language: english                                  # Page attributes and corresponding tags to evaluate

The data_path under prediction is the folder path for the model's PDF page parsing results, which contains markdown files corresponding to each page. The filenames match the image names, with only the .jpg extension replaced with .md.

The data_path under ground_truth is the path to OmniDocBench's markdown folder, with filenames corresponding one-to-one with the model's PDF page parsing markdown results. The page_info path under ground_truth is the path to OmniDocBench's JSON file, mainly used to obtain page-level attributes. If page-level attribute evaluation results are not needed, this field can be commented out. However, without configuring the page_info field under ground_truth, the filter related functionality cannot be used.

For explanations of other fields in the config, please refer to the End-to-end Evaluation - end2end section.

Formula Recognition Evaluation

OmniDocBench contains bounding box information for formulas on each PDF page along with corresponding formula recognition annotations, making it suitable as a benchmark for formula recognition evaluation. Formulas include display formulas (equation_isolated) and inline formulas (equation_inline). Currently, this repo provides examples for evaluating display formulas.

Models

CDM

ExpRate@CDM

BLEU

Norm Edit

GOT-OCR

74.1

28.0

55.07

0.290

Mathpix

86.6

2.8

66.56

0.322

Pix2Tex

73.9

39.5

46.00

0.337

UniMERNet-B

85.0

60.2

60.84

0.238

GPT4o

86.8

65.5

45.17

0.282

InternVL2-Llama3-76B

67.4

54.5

47.63

0.308

Qwen2-VL-72B

83.8

55.4

53.71

0.285

Component-level formula recognition evaluation on OmniDocBench (v1.0) formula subset.

Formula recognition evaluation can be configured according to formula_recognition.

【Field explanations for formula_recognition.yaml】

The configuration of formula_recognition.yaml is as follows:

recogition_eval:      # Specify task name, common for all recognition-related tasks
  metrics:            # Configure metrics to use
    - Edit_dist       # Normalized Edit Distance
    - CDM             # Only supports exporting formats required for CDM evaluation, stored in results
  dataset:                                                                   # Dataset configuration
    dataset_name: omnidocbench_single_module_dataset                         # Dataset name, no need to modify if following specified input format
    ground_truth:                                                            # Ground truth dataset configuration
      data_path: ./demo_data/recognition/OmniDocBench_demo_formula.json      # JSON file containing both ground truth and model prediction results
      data_key: latex                                                        # Field name storing Ground Truth, for OmniDocBench, formula recognition results are stored in latex field
      category_filter: ['equation_isolated']                                 # Categories used for evaluation, in formula recognition, the category_name is equation_isolated
    prediction:                                                              # Model prediction configuration
      data_key: pred                                                         # Field name storing model prediction results, this is user-defined
    category_type: formula                                                   # category_type is mainly used for selecting data preprocessing strategy, options: formula/text

For the metrics section, in addition to the supported metrics, it also supports exporting formats required for CDM evaluation. Simply configure the CDM field in metrics to organize the output into CDM input format, which will be stored in result.

For the dataset section, the data format in the ground_truth data_path remains consistent with OmniDocBench, with just a custom field added under the corresponding formula sample to store the model's prediction results. The field storing prediction information is specified through the data_key under the prediction field in dataset, such as pred. For more details about OmniDocBench's file structure, please refer to the "Dataset Introduction" section. The input format for model results can be found in OmniDocBench_demo_formula, which follows this format:

[{
    "layout_dets": [    // List of page elements
        {
            "category_type": "equation_isolated",  // OmniDocBench category name
            "poly": [    // OmniDocBench position info, coordinates for top-left, top-right, bottom-right, bottom-left corners (x,y)
                136.0,
                781.0,
                340.0,
                781.0,
                340.0,
                806.0,
                136.0,
                806.0
            ],
            ...   // Other OmniDocBench fields
            "latex": "$xxx$",  // LaTeX formula will be written here
            "pred": "$xxx$",   // !! Model prediction result stored here, user-defined new field at same level as ground truth

        ...
    ],
    "page_info": {...},        // OmniDocBench page information
    "extra": {...}             // OmniDocBench annotation relationship information
},
...
]

Here is a model inference script for reference:

import os
import json
from PIL import Image

def poly2bbox(poly):
    L = poly[0]
    U = poly[1]
    R = poly[2]
    D = poly[5]
    L, R = min(L, R), max(L, R)
    U, D = min(U, D), max(U, D)
    bbox = [L, U, R, D]
    return bbox

question = "\nPlease convert this cropped image directly into latex."

with open('./demo_data/omnidocbench_demo/OmniDocBench_demo.json', 'r') as f:
    samples = json.load(f)

for sample in samples:
    img_name = os.path.basename(sample['page_info']['image_path'])
    img_path = os.path.join('./Docparse/images', img_name)
    img = Image.open(img_path)

    if not os.path.exists(img_path):
        print('No exist: ', img_name)
        continue

    for i, anno in enumerate(sample['layout_dets']):
        if anno['category_type'] != 'equation_isolated':   # Filter out equation_isolated category for evaluation
            continue

        bbox = poly2bbox(anno['poly'])
        im = img.crop(bbox).convert('RGB')
        response = model.chat(im, question)  # Modify the way the image is passed in according to the model
        anno['pred'] = response              # Directly add a new field to store the model's inference results under the corresponding annotation

with open('./demo_data/recognition/OmniDocBench_demo_formula.json', 'w', encoding='utf-8') as f:
    json.dump(samples, f, ensure_ascii=False)

Text OCR Evaluation

OmniDocBench contains bounding box information and corresponding text recognition annotations for all text in each PDF page, making it suitable as a benchmark for OCR evaluation. The text annotations include both block-level and span-level annotations, both of which can be used for evaluation. This repo currently provides an example of block-level evaluation, which evaluates OCR at the text paragraph level.

Model Type

Model

Language

Text background

Text Rotate

Mixed

White

Single

Multi

Normal

Rotate90

Rotate270

Horizontal

Pipeline Tools
&
Expert Vision
Models

PaddleOCR

0.071

0.055

0.118

0.060

0.038

0.085

0.060

0.015

0.285

0.021

OpenOCR

0.07

0.068

0.106

0.069

0.058

0.081

0.069

0.038

0.891

0.025

Tesseract-OCR

0.096

0.551

0.250

0.439

0.328

0.331

0.426

0.117

0.969

0.984

EasyOCR

0.26

0.398

0.445

0.366

0.287

0.388

0.36

0.97

0.997

0.926

Surya

0.057

0.123

0.164

0.093

0.186

0.235

0.104

0.634

0.767

0.255

Mathpix

0.033

0.240

0.261

0.185

0.121

0.166

0.180

0.038

0.185

0.638

GOT-OCR

0.041

0.112

0.135

0.092

0.052

0.155

0.091

0.562

0.966

0.097

Vision Language
Models

Qwen2-VL-72B

0.072

0.274

0.286

0.234

0.155

0.148

0.223

0.273

0.721

0.067

InternVL2-76B

0.074

0.155

0.242

0.113

0.352

0.269

0.132

0.610

0.907

0.595

GPT4o

0.020

0.224

0.125

0.167

0.140

0.220

0.168

0.115

0.718

0.132

Component-level OCR text recognition evaluation on OmniDocBench (v1.0) text subset.

OCR text recognition evaluation can be configured according to ocr.

【The field explanation of ocr.yaml】

The configuration file for ocr.yaml is as follows:

recogition_eval:      # Specify task name, common for all recognition-related tasks
  metrics:            # Configure metrics to use
    - Edit_dist       # Normalized Edit Distance
    - BLEU
    - METEOR
  dataset:                                                                   # Dataset configuration
    dataset_name: omnidocbench_single_module_dataset                         # Dataset name, no need to modify if following the specified input format
    ground_truth:                                                            # Ground truth dataset configuration
      data_path: ./demo_data/recognition/OmniDocBench_demo_text_ocr.json     # JSON file containing both ground truth and model prediction results
      data_key: text                                                         # Field name storing Ground Truth, for OmniDocBench, text recognition results are stored in the text field, all block level annotations containing text field will participate in evaluation
    prediction:                                                              # Model prediction configuration
      data_key: pred                                                         # Field name storing model prediction results, this is user-defined
    category_type: text                                                      # category_type is mainly used for selecting data preprocessing strategy, options: formula/text

For the dataset section, the input ground_truth data_path follows the same data format as OmniDocBench, with just a new custom field added under samples containing the text field to store the model's prediction results. The field storing prediction information is specified through the data_key under the prediction field in dataset, for example pred. The input format of the dataset can be referenced in OmniDocBench_demo_text_ocr, and the meanings of various fields can be found in the examples provided in the Formula Recognition Evaluation section.

Here is a reference model inference script for your consideration:

import os
import json
from PIL import Image

def poly2bbox(poly):
    L = poly[0]
    U = poly[1]
    R = poly[2]
    D = poly[5]
    L, R = min(L, R), max(L, R)
    U, D = min(U, D), max(U, D)
    bbox = [L, U, R, D]
    return bbox

question = "\nPlease convert this cropped image directly into latex."

with open('./demo_data/omnidocbench_demo/OmniDocBench_demo.json', 'r') as f:
    samples = json.load(f)

for sample in samples:
    img_name = os.path.basename(sample['page_info']['image_path'])
    img_path = os.path.join('./Docparse/images', img_name)
    img = Image.open(img_path)

    if not os.path.exists(img_path):
        print('No exist: ', img_name)
        continue

    for i, anno in enumerate(sample['layout_dets']):
        if not anno.get('text'):             # Filter out annotations containing the text field from OmniDocBench for model inference
            continue

        bbox = poly2bbox(anno['poly'])
        im = img.crop(bbox).convert('RGB')
        response = model.chat(im, question)  # Modify the way the image is passed in according to the model
        anno['pred'] = response              # Directly add a new field to store the model's inference results under the corresponding annotation

with open('./demo_data/recognition/OmniDocBench_demo_text_ocr.json', 'w', encoding='utf-8') as f:
    json.dump(samples, f, ensure_ascii=False)

Table Recognition Evaluation

OmniDocBench contains bounding box information for tables on each PDF page along with corresponding table recognition annotations, making it suitable as a benchmark for table recognition evaluation. The table annotations are available in both HTML and LaTeX formats, with this repository currently providing examples for HTML format evaluation.

Model Type

Model

Language

Table Frame Type

Special Situation

Overall

Mixed

Full

Omission

Three

Zero

Merge Cell(+/-)

Formula(+/-)

Colorful(+/-)

Rotate(+/-)

OCR-based Models

PaddleOCR

76.8

71.8

80.1

67.9

74.3

81.1

74.5

70.6/75.2

71.3/74.1

72.7/74.0

23.3/74.6

73.6

RapidTable

80.0

83.2

91.2

83.0

79.7

83.4

78.4

77.1/85.4

76.7/83.9

77.6/84.9

25.2/83.7

82.5

Expert VLMs

StructEqTable

72.8

75.9

83.4

72.9

76.2

76.9

64.5/81

69.2/76.6

72.8/76.4

30.5/76.2

75.8

GOT-OCR

72.2

75.5

85.4

73.1

72.7

78.2

75.7

65.0/80.2

64.3/77.3

70.8/76.9

8.5/76.3

74.9

General VLMs

Qwen2-VL-7B

70.2

70.7

82.4

70.2

62.8

74.5

80.3

60.8/76.5

63.8/72.6

71.4/70.8

20.0/72.1

71.0

InternVL2-8B

70.9

71.5

77.4

69.5

69.2

74.8

75.8

58.7/78.4

62.4/73.6

68.2/73.1

20.4/72.6

71.5

Component-level Table Recognition evaluation on OmniDocBench(v1.0) table subset. (+/-) means with/without special situation.

Table recognition evaluation can be configured according to table_recognition.

For tables predicted to be in LaTeX format, the latexml tool will be used to convert LaTeX to HTML before evaluation. The evaluation code will automatically perform format conversion, and users need to preinstall latexml

【The field explanation of table_recognition.yaml】

The configuration file for table_recognition.yaml is as follows:

recogition_eval:      # Specify task name, common for all recognition-related tasks
  metrics:            # Configure metrics to use
    - TEDS            # Tree Edit Distance based Similarity
    - Edit_dist       # Normalized Edit Distance
  dataset:                                                                   # Dataset configuration
    dataset_name: omnidocbench_single_module_dataset                         # Dataset name, no need to modify if following specified input format
    ground_truth:                                                            # Configuration for ground truth dataset
      data_path: ./demo_data/recognition/OmniDocBench_demo_table.json        # JSON file containing both ground truth and model prediction results
      data_key: html                                                         # Field name storing Ground Truth, for OmniDocBench, table recognition results are stored in html and latex fields, change to latex when evaluating latex format tables
      category_filter: table                                                 # Category for evaluation, in table recognition, the category_name is table
    prediction:                                                              # Configuration for model prediction results
      data_key: pred                                                         # Field name storing model prediction results, this is user-defined
    category_type: table                                                     # category_type is mainly used for data preprocessing strategy selection

For the dataset section, the data format in the ground_truth's data_path remains consistent with OmniDocBench, with only a custom field added under the corresponding table sample to store the model's prediction result. The field storing prediction information is specified through data_key under the prediction field in dataset, such as pred. For more details about OmniDocBench's file structure, please refer to the "Dataset Introduction" section. The input format for model results can be found in OmniDocBench_demo_table, which follows this format:

[{
    "layout_dets": [    // List of page elements
        {
            "category_type": "table",  // OmniDocBench category name
            "poly": [    // OmniDocBench position info: x,y coordinates for top-left, top-right, bottom-right, bottom-left corners
                136.0,
                781.0,
                340.0,
                781.0,
                340.0,
                806.0,
                136.0,
                806.0
            ],
            ...   // Other OmniDocBench fields
            "latex": "$xxx$",  // Table LaTeX annotation goes here
            "html": "$xxx$",  // Table HTML annotation goes here
            "pred": "$xxx$",   // !! Model prediction result stored here, user-defined new field at same level as ground truth

        ...
    ],
    "page_info": {...},        // OmniDocBench page information
    "extra": {...}             // OmniDocBench annotation relationship information
},
...
]

Here is a model inference script for reference:

import os
import json
from PIL import Image

def poly2bbox(poly):
    L = poly[0]
    U = poly[1]
    R = poly[2]
    D = poly[5]
    L, R = min(L, R), max(L, R)
    U, D = min(U, D), max(U, D)
    bbox = [L, U, R, D]
    return bbox

question = "\nPlease convert this cropped image directly into html format of table."

with open('./demo_data/omnidocbench_demo/OmniDocBench_demo.json', 'r') as f:
    samples = json.load(f)

for sample in samples:
    img_name = os.path.basename(sample['page_info']['image_path'])
    img_path = os.path.join('./demo_data/omnidocbench_demo/images', img_name)
    img = Image.open(img_path)

    if not os.path.exists(img_path):
        print('No exist: ', img_name)
        continue

    for i, anno in enumerate(sample['layout_dets']):
        if anno['category_type'] != 'table':   # Filter out the table category for evaluation
            continue

        bbox = poly2bbox(anno['poly'])
        im = img.crop(bbox).convert('RGB')
        response = model.chat(im, question)  # Need to modify the way the image is passed in depending on the model
        anno['pred'] = response              # Directly add a new field to store the model's inference result at the same level as the ground truth

with open('./demo_data/recognition/OmniDocBench_demo_table.json', 'w', encoding='utf-8') as f:
    json.dump(samples, f, ensure_ascii=False)

Layout Detection

OmniDocBench contains bounding box information for all document components on each PDF page, making it suitable as a benchmark for layout detection task evaluation.

Model

Backbone

Params

Book

Slides

Research
Report

Textbook

Exam
Paper

Magazine

Academic
Literature

Notes

Newspaper

Average

DiT-L

ViT-L

361.6M

43.44

13.72

45.85

15.45

3.40

29.23

66.13

0.21

23.65

26.90

LayoutLMv3

RoBERTa-B

138.4M

42.12

13.63

43.22

21.00

5.48

31.81

64.66

0.80

30.84

28.84

DocLayout-YOLO

v10m

19.6M

43.71

48.71

72.83

42.67

35.40

51.44

64.64

9.54

57.54

47.38

SwinDocSegmenter

Swin-L

223M

42.91

28.20

47.29

32.44

20.81

52.35

48.54

12.38

38.06

35.89

GraphKD

R101

44.5M

39.03

16.18

39.92

22.82

14.31

37.61

44.43

5.71

23.86

27.10

DOCX-Chain

30.86

11.71

39.62

19.23

10.67

23.00

41.60

1.80

16.96

21.27

Component-level layout detection evaluation on OmniDocBench (v1.0) layout subset: mAP results by PDF page type.

Layout detection config file reference layout_detection, data format reference detection_prediction.

【The field explanation of layout_detection.yaml】

Here is the configuration file for layout_detection.yaml:

detection_eval:   # Specify task name, common for all detection-related tasks
  metrics:
    - COCODet     # Detection task related metrics, mainly mAP, mAR etc.
  dataset:
    dataset_name: detection_dataset_simple_format       # Dataset name, no need to modify if following specified input format
    ground_truth:
      data_path: ./demo_data/omnidocbench_demo/OmniDocBench_demo.json               # Path to OmniDocBench JSON file
    prediction:
      data_path: ./demo_data/detection/detection_prediction.json                    # Path to model prediction result JSON file
    filter:                                             # Page level filtering
      data_source: exam_paper                           # Page attributes and corresponding tags to be evaluated
  categories:
    eval_cat:                # Categories participating in final evaluation
      block_level:           # Block level categories, see OmniDocBench evaluation set introduction for details
        - title              # Title
        - text               # Text
        - abandon            # Includes headers, footers, page numbers, and page annotations
        - figure             # Image
        - figure_caption     # Image caption
        - table              # Table
        - table_caption      # Table caption
        - table_footnote     # Table footnote
        - isolate_formula    # Display formula (this is a layout display formula, lower priority than 14)
        - formula_caption    # Display formula label
    gt_cat_mapping:          # Mapping table from ground truth to final evaluation categories, key is ground truth category, value is final evaluation category name
      figure_footnote: figure_footnote
      figure_caption: figure_caption
      page_number: abandon
      header: abandon
      page_footnote: abandon
      table_footnote: table_footnote
      code_txt: figure
      equation_caption: formula_caption
      equation_isolated: isolate_formula
      table: table
      refernece: text
      table_caption: table_caption
      figure: figure
      title: title
      text_block: text
      footer: abandon
    pred_cat_mapping:       # Mapping table from prediction to final evaluation categories, key is prediction category, value is final evaluation category name
      title : title
      plain text: text
      abandon: abandon
      figure: figure
      figure_caption: figure_caption
      table: table
      table_caption: table_caption
      table_footnote: table_footnote
      isolate_formula: isolate_formula
      formula_caption: formula_caption

The filter field can be used to filter the dataset. For example, setting the filter field under dataset to data_source: exam_paper will filter for pages with data type exam_paper. For more page attributes, please refer to the "Evaluation Set Introduction" section. If you want to evaluate the full dataset, comment out the filter related fields.

The data_path under the prediction section in dataset takes the model's prediction as input, with the following data format:

{
    "results": [
        {
            "image_name": "docstructbench_llm-raw-scihub-o.O-adsc.201190003.pdf_6",                     // image name
            "bbox": [53.892921447753906, 909.8675537109375, 808.5555419921875, 1006.2714233398438],     // bounding box coordinates, representing x,y coordinates of top-left and bottom-right corners
            "category_id": 1,                                                                           // category ID number
            "score": 0.9446213841438293                                                                 // confidence score
        },
        ...                                                                                             // all bounding boxes are flattened in a single list
    ],
    "categories": {"0": "title", "1": "plain text", "2": "abandon", ...}                                // mapping between category IDs and category names

Formula Detection

OmniDocBench contains bounding box information for each formula on each PDF page, making it suitable as a benchmark for formula detection task evaluation.

The format for formula detection is essentially the same as layout detection. Formulas include both inline and display formulas. In this section, we provide a config example that can evaluate detection results for both display formulas and inline formulas simultaneously. Formula detection can be configured according to formula_detection.

【The field explanation of formula_detection.yaml】

Here is the configuration file for formula_detection.yaml:

detection_eval:   # Specify task name, common for all detection-related tasks
  metrics:
    - COCODet     # Detection task related metrics, mainly mAP, mAR etc.
  dataset:
    dataset_name: detection_dataset_simple_format       # Dataset name, no need to modify if following specified input format
    ground_truth:
      data_path: ./demo_data/omnidocbench_demo/OmniDocBench_demo.json               # Path to OmniDocBench JSON file
    prediction:
      data_path: ./demo_data/detection/detection_prediction.json                     # Path to model prediction JSON file
    filter:                                             # Page-level filtering
      data_source: exam_paper                           # Page attributes and corresponding tags to evaluate
  categories:
    eval_cat:                                  # Categories participating in final evaluation
      block_level:                             # Block level categories, see OmniDocBench dataset intro for details
        - isolate_formula                      # Display formula
      span_level:                              # Span level categories, see OmniDocBench dataset intro for details
        - inline_formula                       # Inline formula
    gt_cat_mapping:                            # Mapping table from ground truth to final evaluation categories, key is ground truth category, value is final evaluation category name
      equation_isolated: isolate_formula
      equation_inline: inline_formula
    pred_cat_mapping:                          # Mapping table from prediction to final evaluation categories, key is prediction category, value is final evaluation category name
      interline_formula: isolate_formula
      inline_formula: inline_formula

Please refer to the Layout Detection section for parameter explanations and dataset format. The main difference between formula detection and layout detection is that under the eval_cat category that participates in the final evaluation, a span_level category inline_formula has been added. Both span_level and block_level categories will participate together in the evaluation.

Tools

We provide several tools in the tools directory:

json2md for converting OmniDocBench from JSON format to Markdown format;
visualization for visualizing OmniDocBench JSON files;
generate_result_tables for generating the result leaderboard of the evaluation;
The model_infer folder provides some model inference scripts for reference. Please use after configuring the model environment. Including:
- _img2md.py for calling the models to convert images to Markdown format;
- _ocr.py is to invoke the models for text recognition of block-level document text paragraphs;
- _formula.py is used to call the models for formula recognition of display formulas (equation_isolated);

The evaluation model information

End2End

Model Name

Official Website

Evaluation Version/Model Weights

MinerU-Pipeline

MinerU

3.4.0

MinerU2-VLM

MinerU

HuggingFace MinerU2.0-2505-0.9B

MinerU2.5

MinerU

HuggingFace MinerU2.5-2509-1.2B

MinerU2.5-Pro

MinerU

HuggingFace MinerU2.5-Pro-2605-1.2B

ABot-OCR

HuggingFace ABot-OCR

GLM-OCR

HuggingFace GLM-OCR

Youtu-Parsing

HuggingFace Youtu-Parsing

FireRed-OCR

HuggingFace FireRed-OCR

Qianfan-OCR

HuggingFace Qianfan-OCR

TeleOCR

HuggingFace TeleOCR

OvisOCR2

HuggingFace OvisOCR2

Unlimited-OCR

HuggingFace Unlimited-OCR

dots.ocr

HuggingFace dots.ocr

Logics-Parsing-v2

Logics-Parsing

HuggingFace Logics-Parsing-v2

Ovis2.6-30B-A3B

Ovis

HuggingFace Ovis2.6-30B-A3B

HunyuanOCR

HuggingFace HunyuanOCR

POINTS-Reader

HuggingFace POINTS-Reader

Marker

1.8.2

Mathpix

PaddleOCR PP-StructureV3

PaddleOCR

PP-StructureV3

PaddleOCR-VL

PaddleOCR

Hugging Face PaddleOCR-VL

PaddleOCR-VL-1.5

PaddleOCR

Hugging Face PaddleOCR-VL-1.5

FD-RL

Hugging Face FD-RL

Docling

Hugging Face docling-layout-heron

OpenDoc-0.1B

OpenDoc

Hugging Face OpenDoc-0.1B

Pix2Text

1.1.2.3

Unstructured

0.16.23

OpenParse

0.7.0

MonkeyOCR-pro-1.2B

MonkeyOCR

HuggingFace MonkeyOCR-pro-1.2B

MonkeyOCR-pro-3B

MonkeyOCR

HuggingFace MonkeyOCR-pro-3B

MonkeyOCR-3B

MonkeyOCR

HuggingFace MonkeyOCR-3B

Dolphin

HuggingFace Dolphin

Dolphin-1.5

Dolphin

Hugging Face Dolphin-1.5

Dolphin-v2

Dolphin

Hugging Face Dolphin-v2

Nanonets-OCR-s

HuggingFace Nanonets-OCR-s

OCRFlux

HuggingFace OCRFlux-3B

Mistral OCR

2503

GOT-OCR

Hugging Face GOT-OCR2_0

Nougat

Hugging Face Nougat base

olmOCR

Sglang

SmolDocling

SmolDocling-256M-Preview-transformer

256M-Preview-transformer

GPT-4o

OpenAI GPT-4o

2024-08-06

GPT-5.2

OpenAI GPT-5.2

2025-12-11

Gemini-2.0 Flash

Gemini-3.0 Flash

Gemini-2.5 Pro

Gemini-3 Pro

Qwen2-VL-72B

Qwen2-VL

Hugging Face Qwen2-VL-72B-Instruct

Qwen2.5-VL-7B

Qwen2.5-VL

Hugging Face Qwen2.5-VL-7B-Instruct

Qwen2.5-VL-72B

Qwen2.5-VL

Hugging Face Qwen2.5-VL-72B-Instruct

Qwen3-VL-235B-A22B-Instruct

Qwen3-VL

Hugging Face Qwen3-VL-235B-A22B-Instruct

InternVL2-Llama3-76B

InternVL

Hugging Face InternVL2-Llama3-76B

InternVL3-78B

InternVL

Hugging Face InternVL3-78B

InternVL3_5-241B-A28B

InternVL

Hugging Face InternVL3_5-241B-A28B

DeepSeek-OCR

Hugging Face DeepSeek-OCR

DeepSeek-OCR-2

DeepSeek-OCR

Hugging Face DeepSeek-OCR-2

Kimi K2.5

OCRVerse

Hugging Face OCRVerse-text

Text Recognition

Model Name

Official Website

Evaluation Version/Model Weights

PaddleOCR

PaddlePaddle OCR

2.9.1

Tesseract

Tesseract OCR

5.5

OpenOCR

OpenOCR GitHub

0.0.6

EasyOCR

1.7.2

Surya

Surya GitHub

0.5.0

Layout

Model Name

Official Website

Evaluation Version/Model Weights

DiT-L

Hugging Face DiT

LayoutMv3

Hugging Face LayoutMv3

DOCX-Chain

DocXLayout_231012.pth

DocLayout-YOLO

Hugging Face DocLayout-YOLO

SwinDocSegmenter

model weights

GraphKD

model weights

Formula

Model Name

Official Website

Evaluation Version/Model Weights

GOT_OCR

Hugging Face GOT-OCR2_0

Mathpix

———

Pix2Tex

0.1.2

UniMERNet-B

Hugging Face UniMERNet-B

GPT4o

2024-08-06

InternVL2-Llama3-76B

Huggingface Face InternVL2-Llama3-76B

Qwen2-VL-72B

Hugging Face Qwen2-VL-72B-Instruct

Table

Model Name

Official Website

Evaluation Version/Model Weights

PaddleOCR

RapidTable

ModelScope RapidTable

StructEqTable

Hugging Face StructEqTable

GOT-OCR

Hugging Face GOT-OCR

Qwen2-VL-7B

Hugging Face Qwen2-VL-7B-Instruct

InternVL2-8B

Hugging Face InternVL2-8B

TODO

[ ] Integration of match_full algorithm
[ ] Optimization of matching post-processing for model-specific output formats
[ ] Addition of Unicode mapping table for special characters

Known Issues

Some models occasionally produce non-standard output formats (e.g., recognizing multi-column text as tables, or formulas as Unicode text), leading to matching failures. This can be optimized through post-processing of model output formats
Due to varying symbol recognition capabilities across different models, some symbols are recognized inconsistently (e.g., list identifiers). Currently, only Chinese and English text are included in text evaluation. A Unicode mapping table will be added later for optimization

We welcome everyone to use the OmniDocBench dataset and provide valuable feedback and suggestions to help us continuously improve the dataset quality and evaluation tools. For any comments or suggestions, please feel free to open an issue and we will respond promptly. If you have evaluation scheme optimizations, you can submit a PR and we will review and update in a timely manner.

Acknowledgement

Thank 2077AI for supporting the dataset annotation.
PubTabNet for TEDS metric calculation
latexml LaTeX to HTML conversion tool
Tester Markdown table to HTML conversion tool

Copyright Statement

The PDFs are collected from public online channels and community user contributions. Content that is not allowed for distribution has been removed. The dataset is for research purposes only and not for commercial use. If there are any copyright concerns, please contact [email protected].

Citation

@misc{ouyang2024omnidocbenchbenchmarkingdiversepdf,
      title={OmniDocBench: Benchmarking Diverse PDF Document Parsing with Comprehensive Annotations},
      author={Linke Ouyang and Yuan Qu and Hongbin Zhou and Jiawei Zhu and Rui Zhang and Qunshu Lin and Bin Wang and Zhiyuan Zhao and Man Jiang and Xiaomeng Zhao and Jin Shi and Fan Wu and Pei Chu and Minghao Liu and Zhenxiang Li and Chao Xu and Bo Zhang and Botian Shi and Zhongying Tu and Conghui He},
      year={2024},
      eprint={2412.07626},
      archivePrefix={arXiv},
      primaryClass={cs.CV},
      url={https://arxiv.org/abs/2412.07626},
}

OmniDocBench

Table of Contents

Updates

Benchmark Introduction

Evaluation

Environment Setup and Running

Verified versions

Worker concurrency

Running the evaluation

End-to-End Evaluation

End-to-End Evaluation Method - end2end

End-to-end Evaluation Method - md2md

Formula Recognition Evaluation

Text OCR Evaluation

Table Recognition Evaluation

Layout Detection

Formula Detection

Tools

The evaluation model information

End2End

Text Recognition

Layout

Formula

Table

TODO

Known Issues

Acknowledgement

Copyright Statement

Citation
